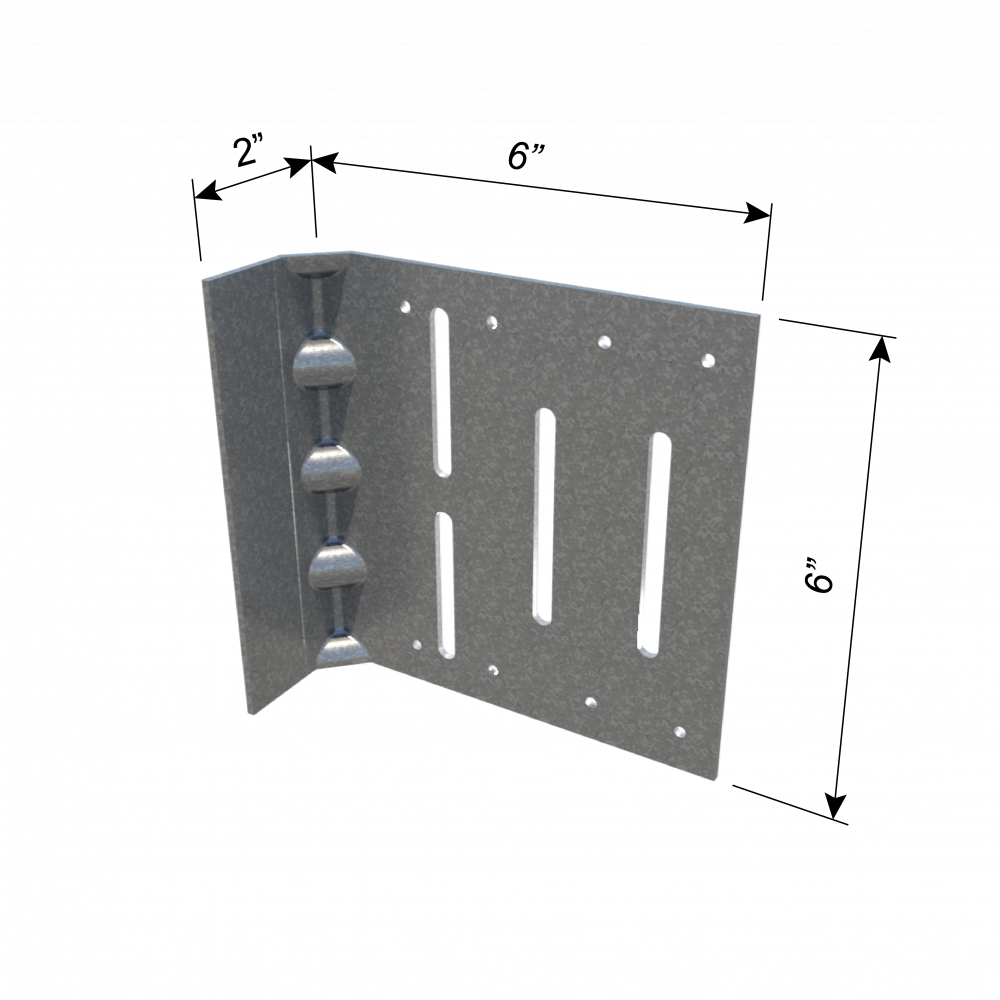

ClarkDietrich FUS6-118 FIXED UNIVERSAL SLIP CLIP 6" x 6" x 2" x 118 mils (10ga)

Product Description

The FUS Fixed Universal Slip Clips are available in standard lengths of 6" and 8” in 12ga and 10ga. They are ideal for medium to larger standoff conditions. FUS clips install quickly and provide adjustable standoff to ensure a plumb wall plane. For deflection application, proprietary heavy duty deflection screws are provided with each clip to ensure friction-free sliding. U.S. Patent No. 11,905,700 Installation: Connections to the building can be made with screws, welds powder-actuated fasteners (PAF). Mechanical fasteners shall be located on the embossed marks given on the scored line of the 2" flange. Attach building anchors to the structure according to the manufacturer’s instructions. Anchors shall be installed through the embossments on the scored line of the clip as shown on the attached drawings. In no case shall anchors be installed more than 3/4" from the bend on the short leg of the clip. In cases of discrepancy between this information and the Design Engineer’s details, the Design Engineer’s details shall be followed.

Product Information

• Sold per piece
• Dimensions: 6" x 6" x 2" x 118 mils (10ga)
• Eliminates shims and scabs.
• Provides vertical movement up to 1” when installed as a deflection application.
• Fast, one-piece universal installation. No left- or right-handed clips.
• Higher capacities when used in applications where significantly higher capacities are required.
• Proprietary heavy duty deflection screws provide frictionless slip connections. One bag (80 screws) included.
• G90 galvanized coating.
