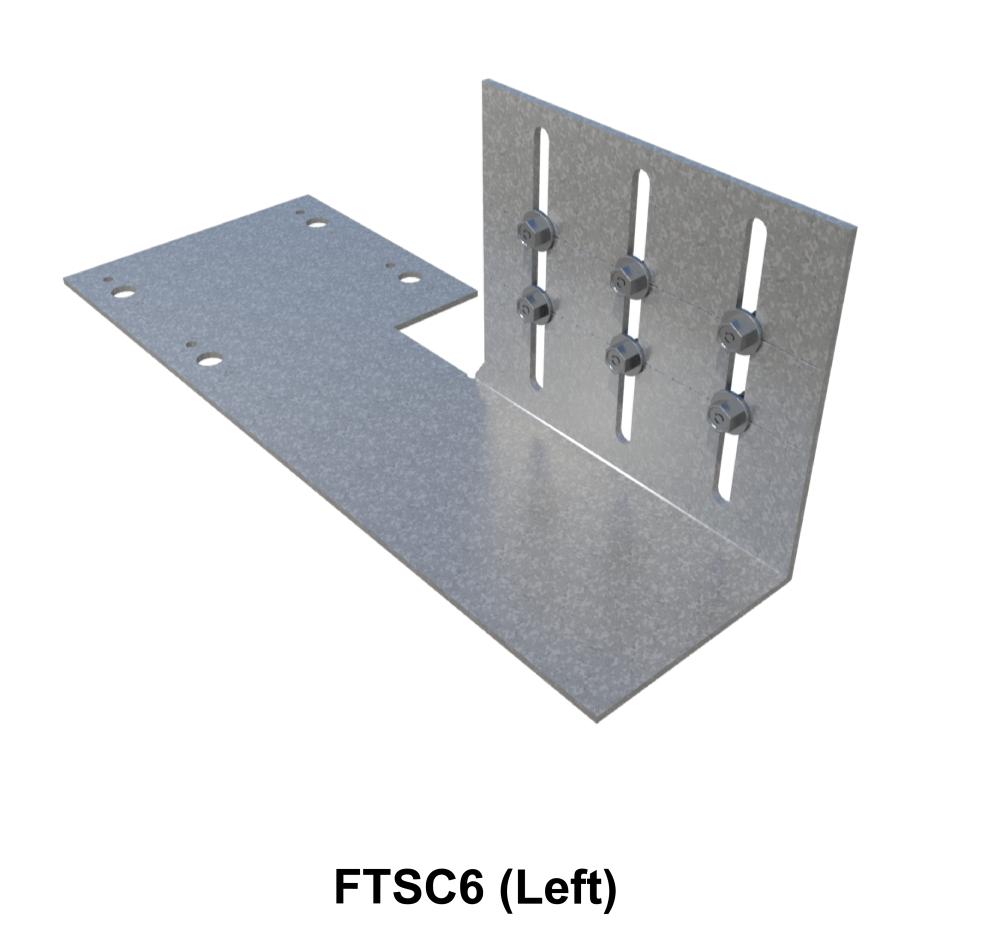

ClarkDietrich FTSC6-97 (Left) FLAT TAIL SLIDE CLIP 12 GA 3" X 11-1/2" 11-1/2" x 4-1/4" x 4-1/2" x 97mils (12ga)

ClarkDietrich FTSC6-97 (Left) FLAT TAIL SLIDE CLIP 12 GA 3" X 11-1/2" 11-1/2" x 4-1/4" x 4-1/2" x 97mils (12ga)

Regular price $11.01 USD
Regular price Sale price $11.01 USD
Sale Sold out

Product Description

ClarkDietrich Flat Tail™ Slide Clip is used to attach exterior curtain-wall studs to the building structure and provide for 2-1/4" vertical building movement independent of the cold-formed steel framing. A Flat Tail Slide Clip provides variable standoff and eliminates the need for shims or additional framing components. Allows for vertical building movement and provides a horizontal standoff. The clip easily fastens to the floor/ceiling beam and is secured to the stud with ClarkDietrich Proprietary Deflection Screws. The clip restricts lateral movement, but enables vertical building movement.

Product Information

  • Sold per piece
  • Dimensions: 11-1/2" x 4-1/4" x 4-1/2" x 97mils (12ga)
  • Ideal for variable standoff conditions.
  • Vertical movement up to 2-1/4” (1-1/8” up and 1-1/8” down).
  • Proprietary Deflection Screws (included) provide frictionless slip connection.
  • Available in right and left versions
