ClarkDietrich
ClarkDietrich FTSC3-97 (RIGHT) FLAT TAIL SLIDE CLIP 12GA 3" X 9-1/2" 9-1/2" x 4-1/4" x 4-1/2" x 97mils (12ga) (bucket of 25)
ClarkDietrich FTSC3-97 (RIGHT) FLAT TAIL SLIDE CLIP 12GA 3" X 9-1/2" 9-1/2" x 4-1/4" x 4-1/2" x 97mils (12ga) (bucket of 25)
Regular price
$235.71 USD
Regular price
Sale price
$235.71 USD
Unit price
/
per
Couldn't load pickup availability
Product Description

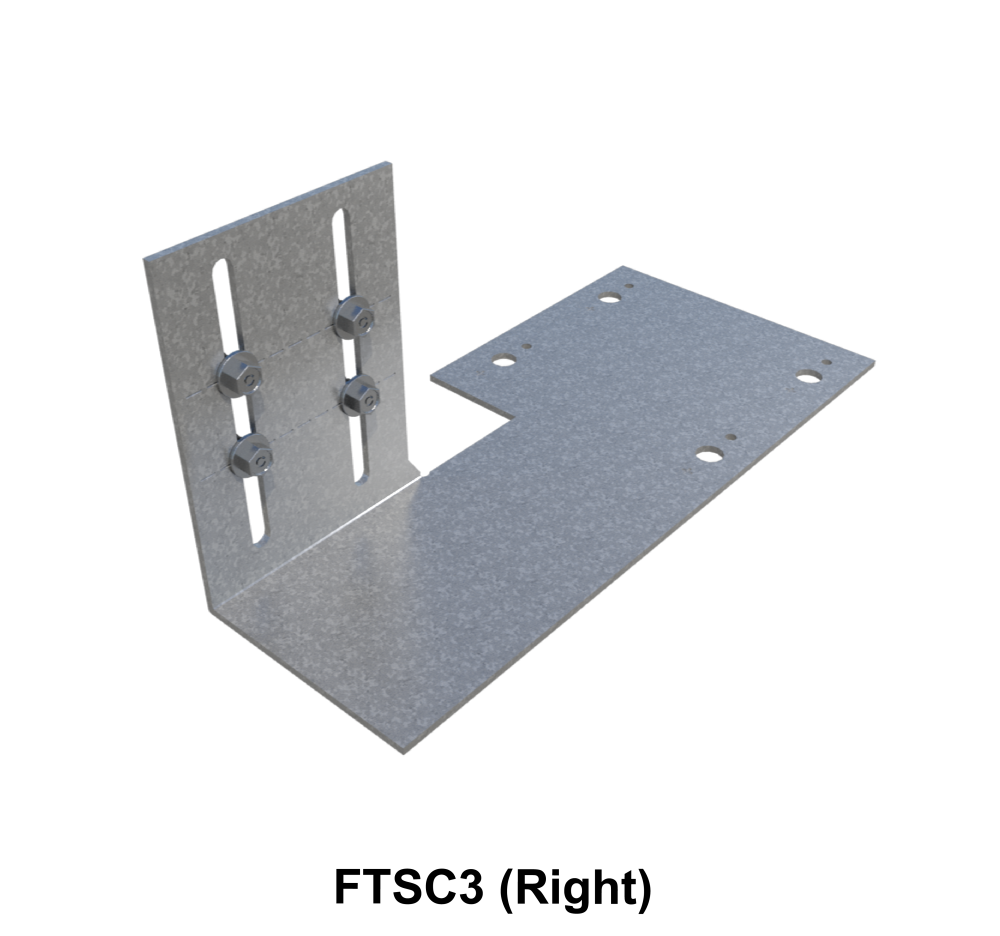

ClarkDietrich Flat Tail™ Slide Clip is used to attach exterior curtain-wall studs to the building structure and provide for 2-1/4" vertical building movement independent of the cold-formed steel framing. A Flat Tail Slide Clip provides variable standoff and eliminates the need for shims or additional framing components. Allows for vertical building movement and provides a horizontal standoff. The clip easily fastens to the floor/ceiling beam and is secured to the stud with ClarkDietrich Proprietary Deflection Screws. The clip restricts lateral movement, but enables vertical building movement.
Product Information
- Sold as 25 per bucket
- Dimensions: 9-1/2" x 4-1/4" x 4-1/2" x 97mils (12ga)
- Ideal for variable standoff conditions.
- Vertical movement up to 2-1/4” (1-1/8” up and 1-1/8” down).
- Proprietary Deflection Screws (included) provide frictionless slip connection.
- Available in right and left versions
