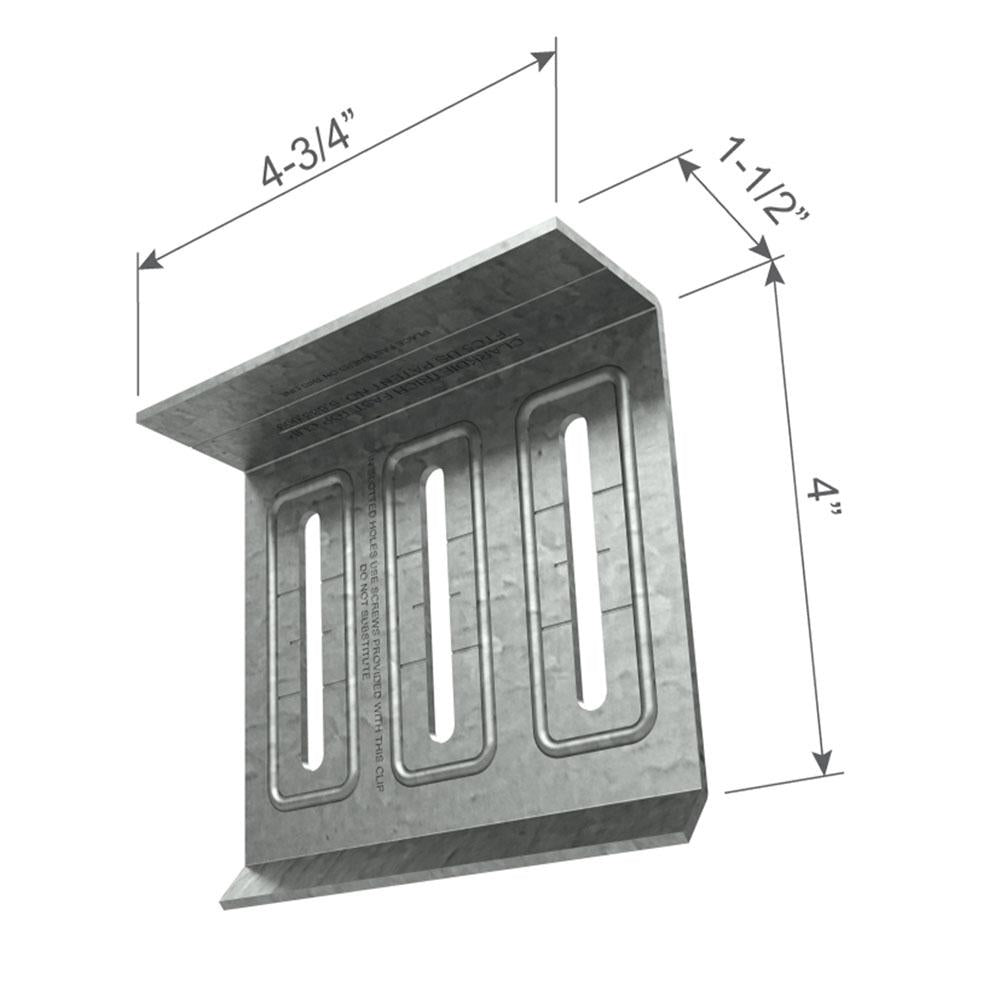

ClarkDietrich FTC5 FAST TOP™ CLIP 4-3/4" x 4" x 1-1/2" x 68mils (14ga) (box of 30)
ClarkDietrich FTC5 FAST TOP™ CLIP 4-3/4" x 4" x 1-1/2" x 68mils (14ga) (box of 30)
Couldn't load pickup availability
Product Description
Used in head-of-wall deflection conditions for exterior curtain wall and interior, nonload-beraing walls. ClarkDietrich Fast Top™ Clips are used in head-of-wall deflection conditions for in-fill curtain-wall assemblies to provide for vertical movement. These clips are used in place of or in combination with deflection track. These clips provide a positive attachment and do not require bridging installed continuously throughout the upper most punchouts. The Fast Top™ clip can be attached to the underside of structural members, concrete decks or floor assemblies. Studs must be cut less than full height to enable vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down). Fast Top™ Clips install quickly with welds, screws, or powder actuated fasteners. FastClip™ deflection screws are used to attach the clip to the cold-formed framing and to ensure frictionless deflection. These clips are also embossed with fastening patterns to ensure accurate placement of fasteners. U.S. Patent No. 6,688,069
Product Information
- Sold as 30 per box
- Dimensions: 4-3/4" x 4" x 1-1/2" x 68mils (14ga)
- Vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down).
- FastClip™ Deflection Screws (included) provide frictionless slip connection.
