ClarkDietrich

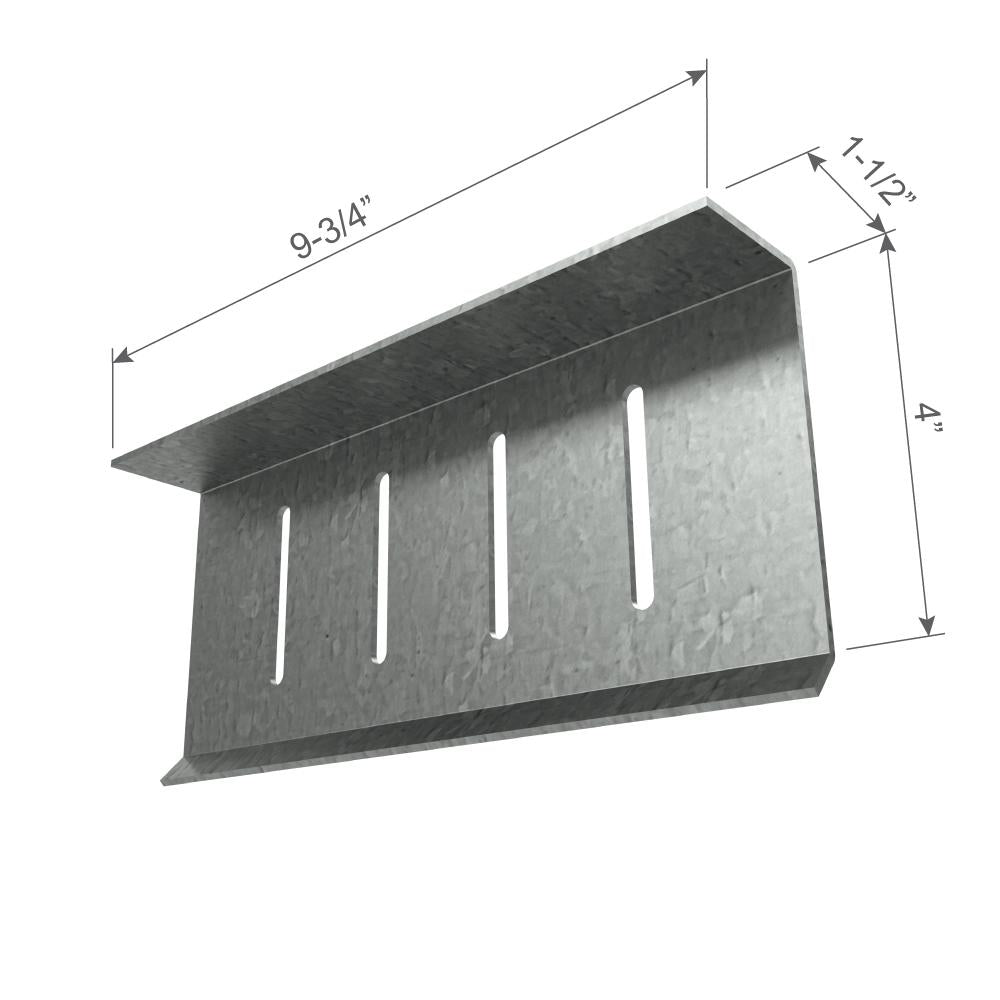

ClarkDietrich FTC10 FAST TOP™ CLIP 9-3/4" x 4" x 1-1/2" x 68mils (14ga) (box of 25)

ClarkDietrich FTC10 FAST TOP™ CLIP 9-3/4" x 4" x 1-1/2" x 68mils (14ga) (box of 25)

Regular price $189.64 USD
Regular price Sale price $189.64 USD
Sale Sold out

Product Description

Used in head-of-wall deflection conditions for exterior curtain wall and interior, nonload-beraing walls. ClarkDietrich Fast Top™ Clips are used in head-of-wall deflection conditions for in-fill curtain-wall assemblies to provide for vertical movement. These clips are used in place of or in combination with deflection track. These clips provide a positive attachment and do not require bridging installed continuously throughout the upper most punchouts. The Fast Top™ clip can be attached to the underside of structural members, concrete decks or floor assemblies. Studs must be cut less than full height to enable vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down). Fast Top™ Clips install quickly with welds, screws, or powder actuated fasteners. FastClip™ deflection screws are used to attach the clip to the cold-formed framing and to ensure frictionless deflection. These clips are also embossed with fastening patterns to ensure accurate placement of fasteners. U.S. Patent No. 6,688,069

Product Information

  • Sold as 25 per box
  • Dimensions: 9-3/4" x 4" x 1-1/2" x 68mils (14ga)
  • Vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down).
  • FastClip™ Deflection Screws (included) provide frictionless slip connection.

Alternative Products

  • Deflection Clips
  • Additional Resources

    Link to manufacturer website.

    Link to submittals.

    Link to collection.
