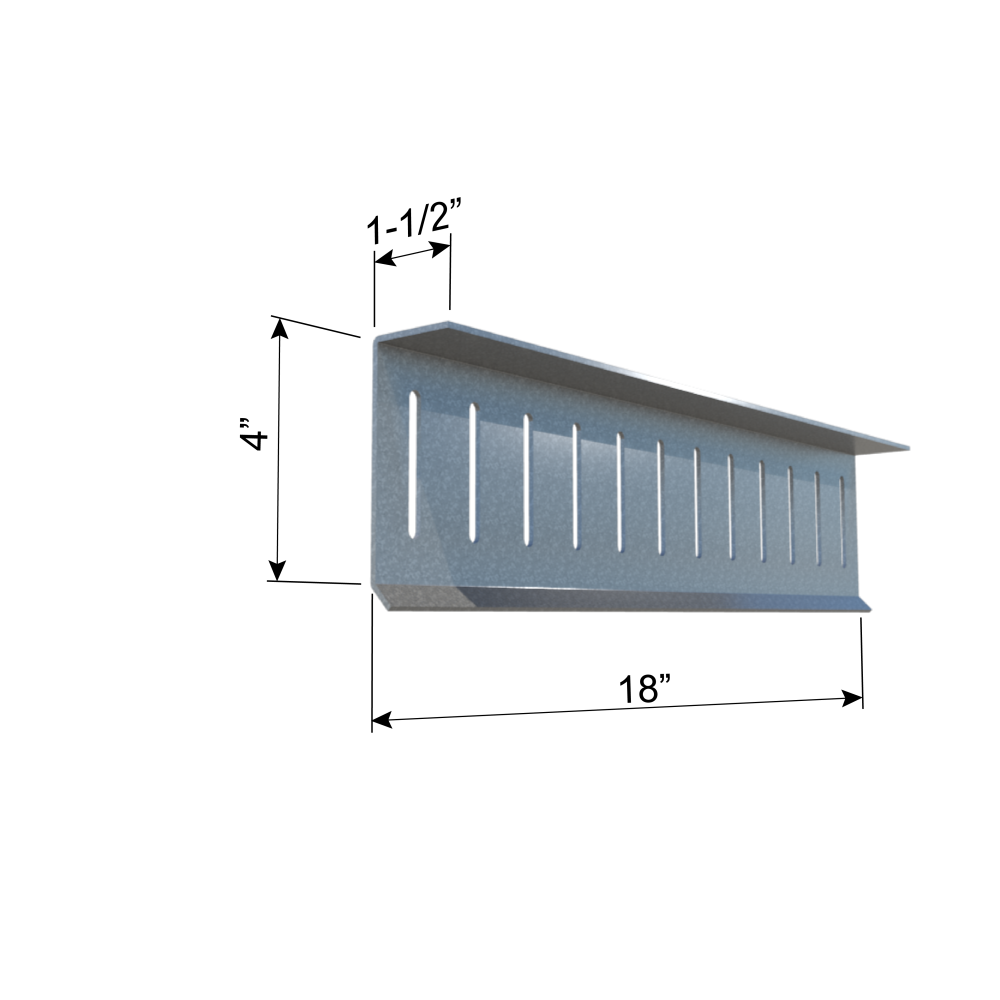

ClarkDietrich FS18 FAST STRUT™ 18" x 4" x 1-1/2" x 68mils (14ga) (box of 10)

ClarkDietrich FS18 FAST STRUT™ 18" x 4" x 1-1/2" x 68mils (14ga) (box of 10)

Regular price $88.00 USD
Regular price Sale price $88.00 USD
Sale Sold out

Product Description

Excellent for large standoff conditions. ClarkDietrich Fast Strut™ curtain-wall connector employs the Fast Clip™ technology for curtain-wall stud attachment and is commonly used when large stand-off conditions exist. Fast Strut™ products are available in standard lengths of 12-1/4" and 15-1/4" and custom lengths of up to 24" long to allow framing attachment well beyond the perimeter of the structural steel or when the spandrel beams are set back from the edge of the structure. Struts are attached to the underside of structural members with screws, welds, or powder-actuated fasteners. Proprietary Deflection Screws are provided with each strut to ensure friction-free sliding. FS12 and FS15 are embossed with fastening patterns to ensure accurate placement of the fasteners. Learn more about designing for building movement at our blog. U.S. Patent No. 6,688,069

Product Information

  • Sold as 10 per box
  • Dimensions: 18" x 4" x 1-1/2" x 68mils (14ga)
  • Vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down).
  • Allows for standoff from the primary building structure.
  • Proprietary Deflection Screws (included) provide frictionless slip connection.
