ClarkDietrich FCSC 3.5 FASTCLIP™ SLIDE CLIP 4-1/2" x 3-1/2" x 1-1/2" x 68mils (14ga) (box of 25)

ClarkDietrich FCSC 3.5 FASTCLIP™ SLIDE CLIP 4-1/2" x 3-1/2" x 1-1/2" x 68mils (14ga) (box of 25)

Regular price $73.21 USD
Regular price Sale price $73.21 USD
Sale Sold out

Product Description

ClarkDietrich FastClip™ Slide Clip deflection clips are used to attach exterior curtain-wall studs to the building structure and provide for vertical building movement independent of the cold-formed steel framing. This clip installs quickly with screws or powder-actuated fasteners, and provides adjustable standoff to ensure a plumb wall plane. Proprietary Deflection Screws are provided with each clip to ensure friction-free sliding. Each clip is also embossed with fastening patterns to ensure accurate placement of fasteners. This clip enables vertical building movement up to 3". U.S. Patent No. 6,688,069 Installation: Connections to the building can be made with screws, powder-actuated fasteners or drill-in concrete anchors. Mechanical fasteners shall be located on the embossed marks given on the scored line of the 1.5" flange. Two or three Proprietary Deflection Screws (based upon clip size) are used to attach the clip to the cold-formed steel framing. Screws shall be driven through the slotted holes and positioned to allow for the appropriate building deflection.

Product Information

  • Sold as 25 per box

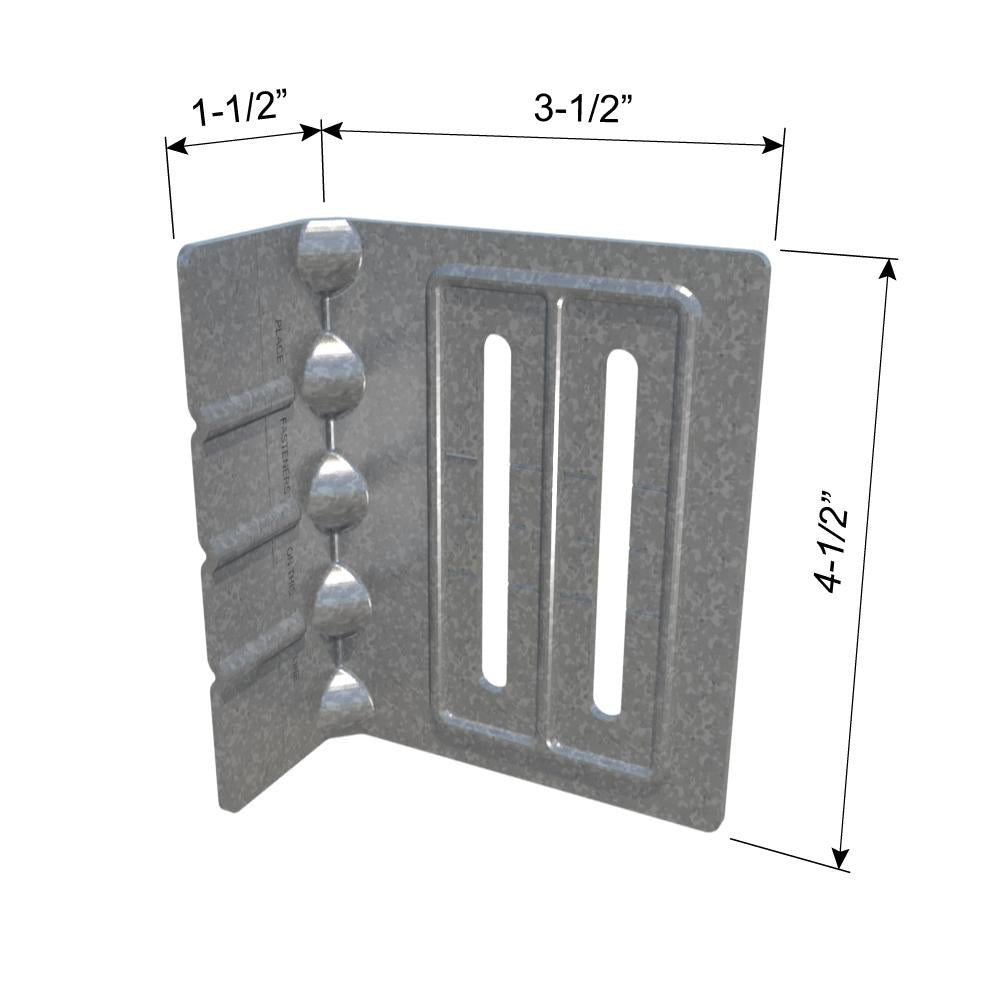

  • Dimensions: 4-1/2" x 3-1/2" x 1-1/2" x 68mils (14ga)
  • Vertical movement up to 3" (1-1/2" up and 1-1/2" down).
  • 3-1/2" FastClip™ permits up to 1" of standoff from the primary frame.
  • Proprietary Deflection Screws (included) provide frictionless slip connection.
  • G90 galvanized coating.
