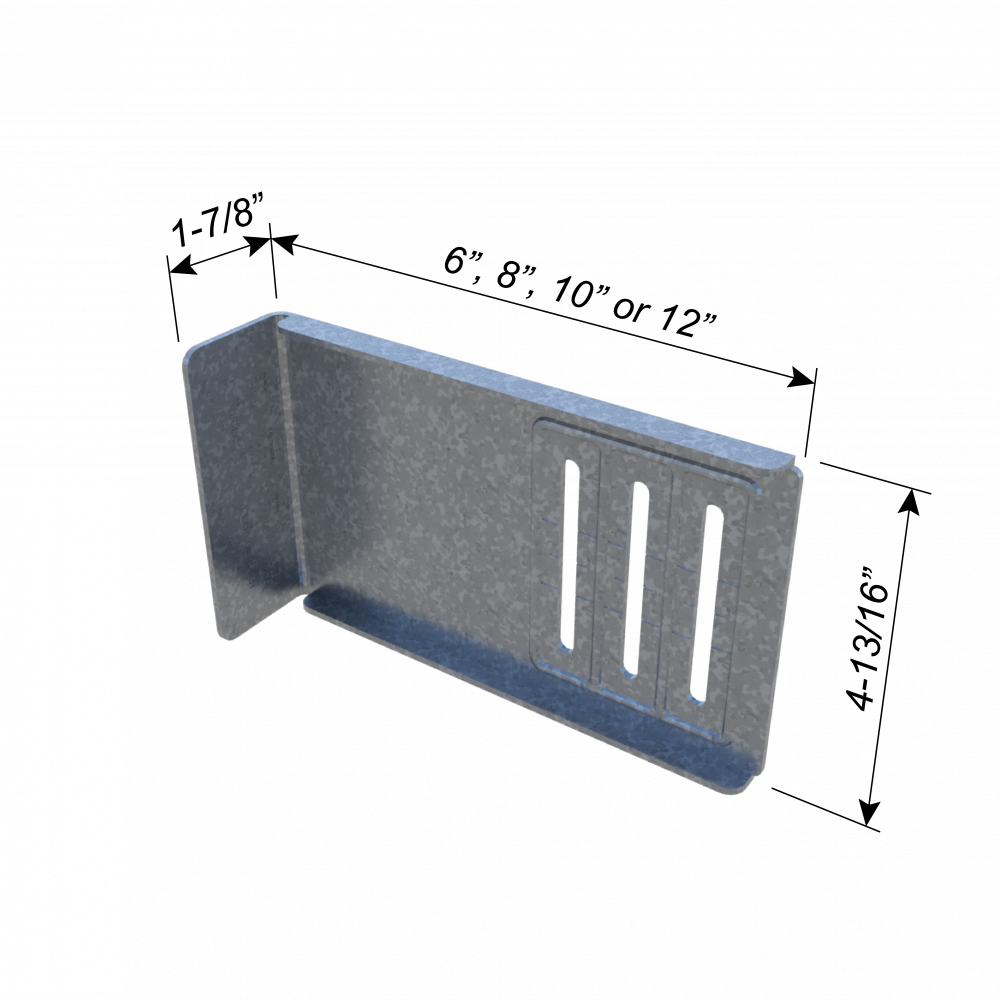

ClarkDietrich FCEC 12-97 EXTENDED FASTCLIP™ 12GA 12" x 4-3/4" x 1-7/8" x 97mils (12ga) (bucket of 25)

Product Description

EXTENDED FastClip™ Slide Clip™ (FCEC) deflection clips are used to attach exterior curtain wall studs to the building structure and provide for vertical building movement independent of the cold-formed steel framing. Provides for vertical building movement up to 3" and is commonly used for large standoff conditions. The clips are available in standard lengths of 6", 8”, 10” and 12” and are ideal for medium to larger standoff conditions. EXTENDED FastClip™ deflection clips install quickly with screws, welds or powder-actuated fasteners, and provide adjustable standoff to ensure a plumb wall plane. FastClip™ Deflection Screws are provided with each clip to ensure friction-free sliding. FastClip 14GA system meets Intertek CCRR-0208 in compliance with the 2021, 2018 & 2015 International Building Code® (IBC) and International Residential Code® (IRC), as well as the 2020 Florida Building Code and 2022, 2019 California Building Code. U.S. Patent No. 6,688,069 Installation: Connections to the building can be made with screws, welds powder-actuated fasteners or drill-in concrete anchors. Mechanical fasteners shall be located on the embossed marks given on the scored line of the 1-7/8" flange. Attach building anchors to the structure according to the manufacture’s instructions. Anchors shall be installed through the embossments on the scored line of the clip as shown on the attached drawings. In no case shall anchors be installed more than 3/4" from the bend on the short leg of the clip. In cases of discrepancy between this information and the Design Engineer’s details, the Design Engineer’s details shall be followed. Three FastClip™ Deflection Screws are used to attach the clip to the cold-formed steel framing. Screws shall be driven through the slotted holes and positioned to allow for the appropriate building deflection.

Product Information

• Sold as 25 per bucket
• Dimensions: 12" x 4-3/4" x 1-7/8" x 97mils (12ga)
• Eliminates shims and scabs.
• Vertical movement up to 3" (1-1/2" up and 1-1/2"down).
• Specially designed to simplify welding installation.
• Fast, one-piece universal installation. No left or right handed clips.
• FastClip™ Deflection Screws (included) provide frictionless slip connections.
• G90 galvanized coating.
