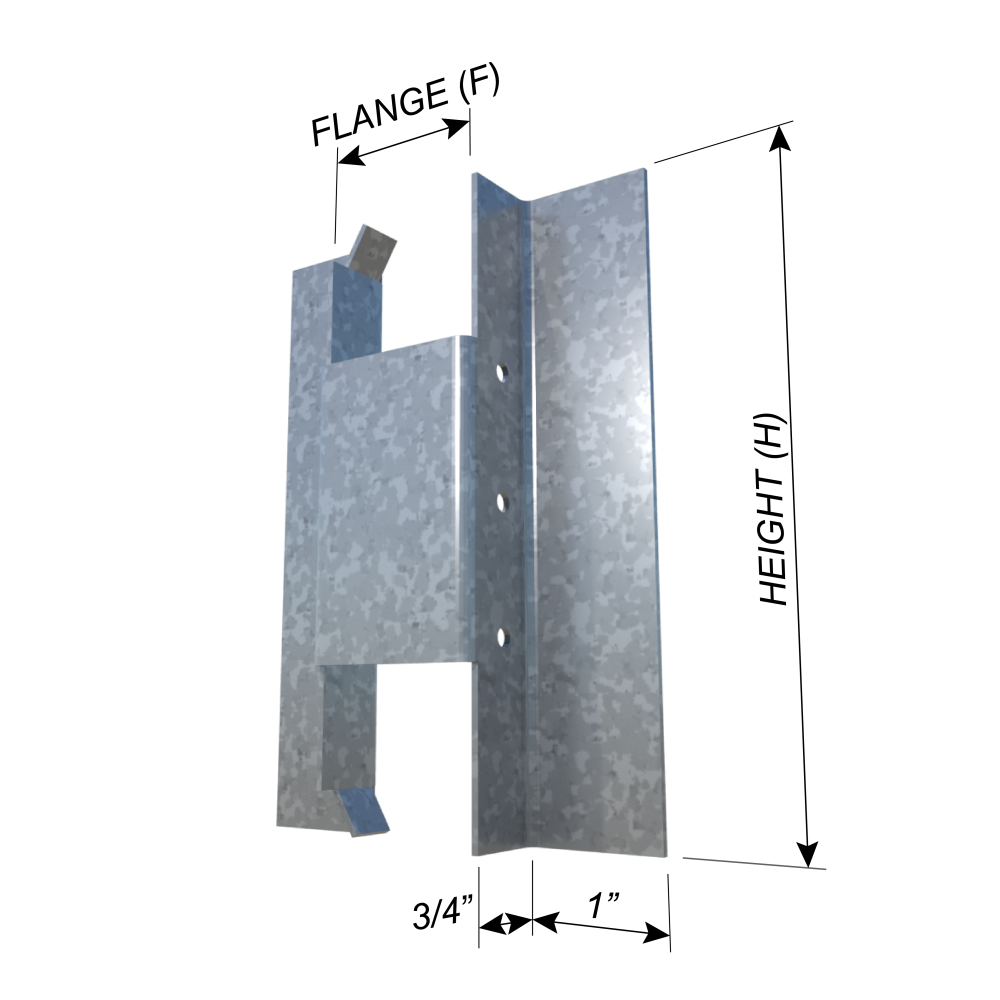

ClarkDietrich FBBC 162-FBBC5-2X FASTBACK® 5-1/8 2X WOOD BACKING - 1-5/8" Flange 5-1/8" x 1" x 3/4" x 1-5/8" x 33mils (20ga)

Product Description

The FastBack backing system features a universal design that works with studs in either direction—concealing fasteners on the face of the product. Reduces screw pops and touch up work with no exposed fasteners on the face of the product. The system creates an interlocked design between the stud and track for baseboard backing installations; and a cutaway design allows backing and bracing to be installed all the way to the floor. This backing system excels when used for handrails, baseboards, doorjams/trim, and cabinets/vanities. 162-FBBC5-2X is designed to support traditional 2X lumber. 162-FBBC5-2X is designed for 1-5/8" structural stud flange widths. Installation: Rotate the FastBack® clip over the flange of the stud until it sits flush. Fasten into place using drywall screws in the pre-drilled holes. Place wood onto tabs and fasten into place using standard drywall screws.

Product Information

• Sold per piece
• Dimensions: 5-1/8" x 1" x 3/4" x 1-5/8" x 33mils (20ga)
• Cutaway design enables the installation of backing and bracing all the way to the floor.
• Perfect backing system for Handrails, Baseboards, Door Jams and Wood Trim, Cabinets and Vanities.
• G90 galvanized coating.
• Compatible with conventional 2X timber.
• Designed for 1-5/8" structural stud flange widths.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
