ClarkDietrich E979 SUPPORT CLIP 12 GA 9" x 4" x 1-1/2" x 97mils (12ga) (bucket of 50)

ClarkDietrich E979 SUPPORT CLIP 12 GA 9" x 4" x 1-1/2" x 97mils (12ga) (bucket of 50)

Regular price $369.29 USD
Regular price Sale price $369.29 USD
Sale Sold out

Product Description

EasyClip™ E-Series™ Support Clips are used for rigid stand-off connections. The 4" wide leg provides extra length to achieve stand-off connections up to 3". They are commonly used in by-pass wall conditions, solid blocking attachments in joist framing and to secure rafter framing to the primary structure. These clips are pre-punched for faster and more accurate fastener placement. Installation: Support clips are attached to the cold-formed steel (CFS) framing members using #10 minimum self-drilling screws driven through the clip holes into the steel framing. When not filling all holes, install fasteners symmetrically starting at the top and bottom edges and move toward the center of the clip. Clip can also be welded to the CFS framing. Connections to the building frame can be made with powder-actuated fasteners, drill-in concrete anchors or welding. When using the tabular values for a welded clip, provide a full weld to the structure, top to bottom, along the outside of the clip. A 3/4" minimum weld on the outside edge of the 1-1/2" leg is also required to control warping or to hold the clip in place before final welding.

Product Information

  • Sold as 50 per bucket

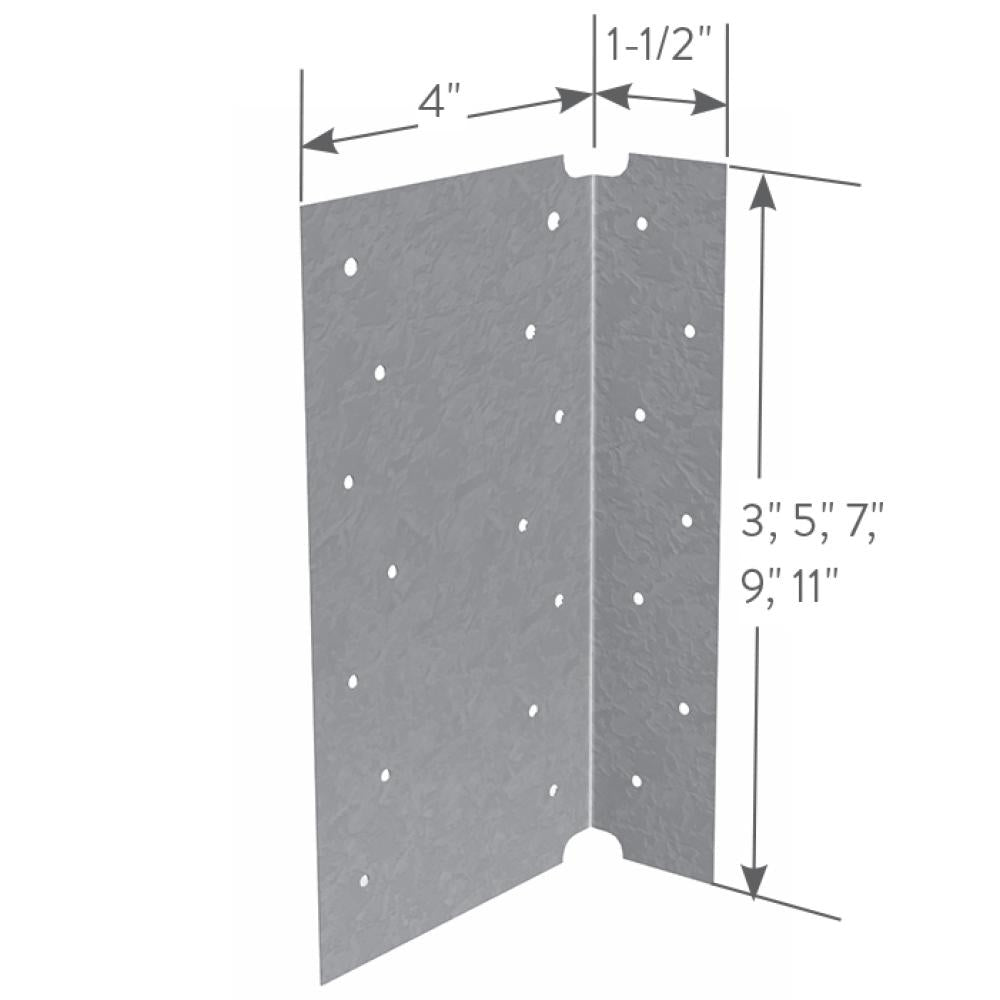

  • Dimensions: 9" x 4" x 1-1/2" x 97mils (12ga)
  • 4" leg accommodates large standoff.
  • Lengths available in 3", 5", 7", 9" and 11".
  • Available in 16, 14 and 12 gauge.
  • G90 galvanized coating.

Alternative Products

  • Angle Clips
  • Additional Resources

    Link to manufacturer website.

    Link to submittals.

    Link to collection.
