ClarkDietrich DRLC DRIFT RAIL LOCKING CLIP 5.6IN 12G (bucket of 100)

Product Description

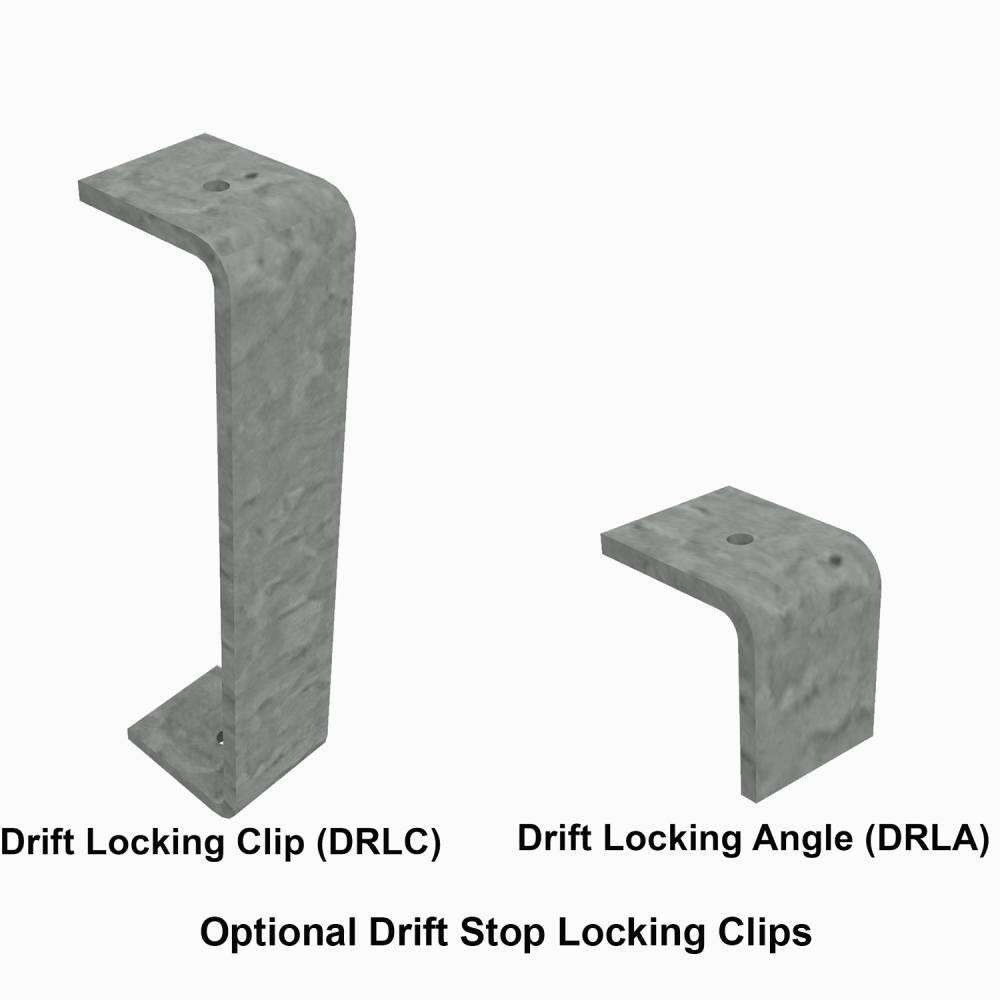

The ClarkDietrich Drift Rail and Drift Rail Clips form a uniquely designed, versatile two-piece system for attaching curtain-wall studs to building structures, enabling both vertical and lateral movement or rigid attachment. The DRLC Drift Locking Clip is an optional C-shaped clip that prevents lateral drift movement along the drift rail. For an alternative L-shaped clip option serving the same function, please see the DRLA locking angle. Installation: 1- The DRLC is positioned within the channel of the Drift Clip, spanning the flanges of the Drift Rail. 2- The two outer legs of the DRLC are fastened to each flange of the Drift Rail using a #10 self-drilling screw.

Product Information

• Sold as 100 per bucket
• Dimensions:
• Optional accessory for Drift Rail System.
• Restricts clip lateral movement.
