ClarkDietrich DRLA DRIFT RAIL LOCKING ANGLE 2IN 12GA (bucket of 100)

Product Description

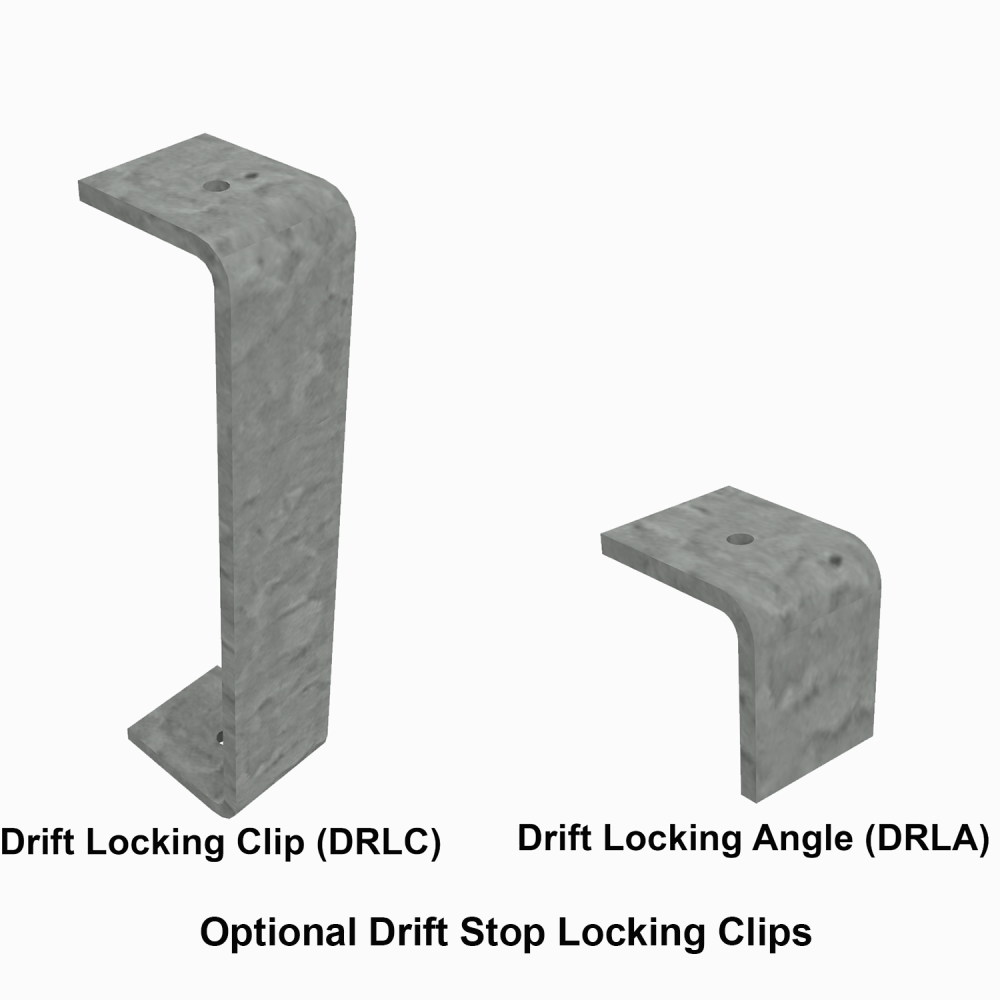

The ClarkDietrich Drift Rail and Drift Rail Clips form a uniquely designed, versatile two-piece system for attaching curtain-wall studs to building structures, enabling both vertical and lateral movement or rigid attachment. The DRLA Drift Locking Angle is an optional L-shaped clip that prevents lateral drift movement along the drift rail. For a C-shaped clip option serving the same purpose, refer to the DRLC. Installation: 1- Insert the long leg into the channel of the Drift Rail Clip. 2- Secure the short leg to the flange of the Drift Rail using a #10 self-drilling screw.

Product Information

• Sold as 100 per bucket
• Dimensions:
• Optional accessory for Drift Rail System.
• Restricts clip lateral movement.
