ClarkDietrich

ClarkDietrich D973 ANCHOR CLIP 12GA 3-1/2" x 2" x 2" x 97mils (12ga) (bucket of 40)

ClarkDietrich D973 ANCHOR CLIP 12GA 3-1/2" x 2" x 2" x 97mils (12ga) (bucket of 40)

Regular price $149.14 USD
Regular price Sale price $149.14 USD
Sale Sold out

Product Description

The ClarkDietrich EasyClip™ D-Series™ and T-Series™ Anchor Clips offer high-performance and cost-effective solutions for various connections, including knee wall-to-foundation, light-duty shear wall-to-foundation, and truss-to-wall connections. These anchor clips are engineered to withstand horizontal, torsional, and vertical (uplift) loads. Featuring reinforced stiffening ribs, these multi-application clips deliver superior design values for optimal performance. Factory pre-punched with an array of attachment holes for anchor bolts, kwik-cons, and screws, these clips enable efficient and precise fastener placement. Installation: 1- Begin by attaching the leg with only screw holes to the web of the stud, joist, rafter, or track using the applicable number of fasteners (screws or welds). 2- Secure the bottom leg (featuring the anchor bolt hole) to the structure using the prepunched holes and appropriate fasteners. Make sure the number and type of fasteners are in accordance with the design load requirements.

Product Information

  • Sold as 40 per bucket

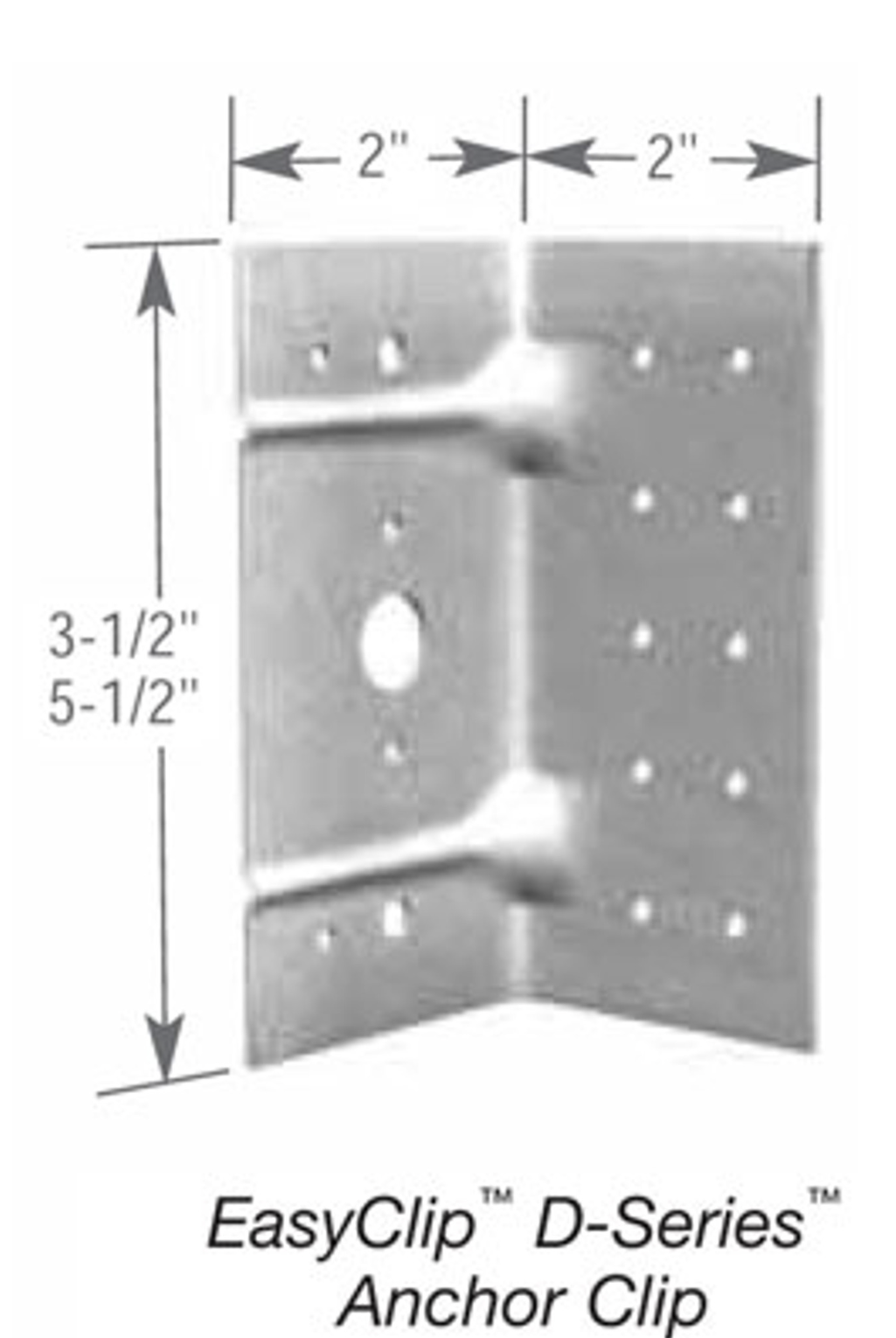

  • Dimensions: 3-1/2" x 2" x 2" x 97mils (12ga)
  • Resist uplift, horizontal and rotational loads.
  • Stiffening ribs for superior performance.
  • Pre-punched holes for fast attachment.
  • Multipurpose applications.
