ClarkDietrich

ClarkDietrich D-FCSC8 DRIFT FASTCLIP™ SLIDE CLIP 8IN 14G 3-3/4" x 4" x 7-3/4" long (14ga) (bucket of 25)

ClarkDietrich D-FCSC8 DRIFT FASTCLIP™ SLIDE CLIP 8IN 14G 3-3/4" x 4" x 7-3/4" long (14ga) (bucket of 25)

Regular price $243.93 USD
Regular price Sale price $243.93 USD
Sale Sold out

Product Description

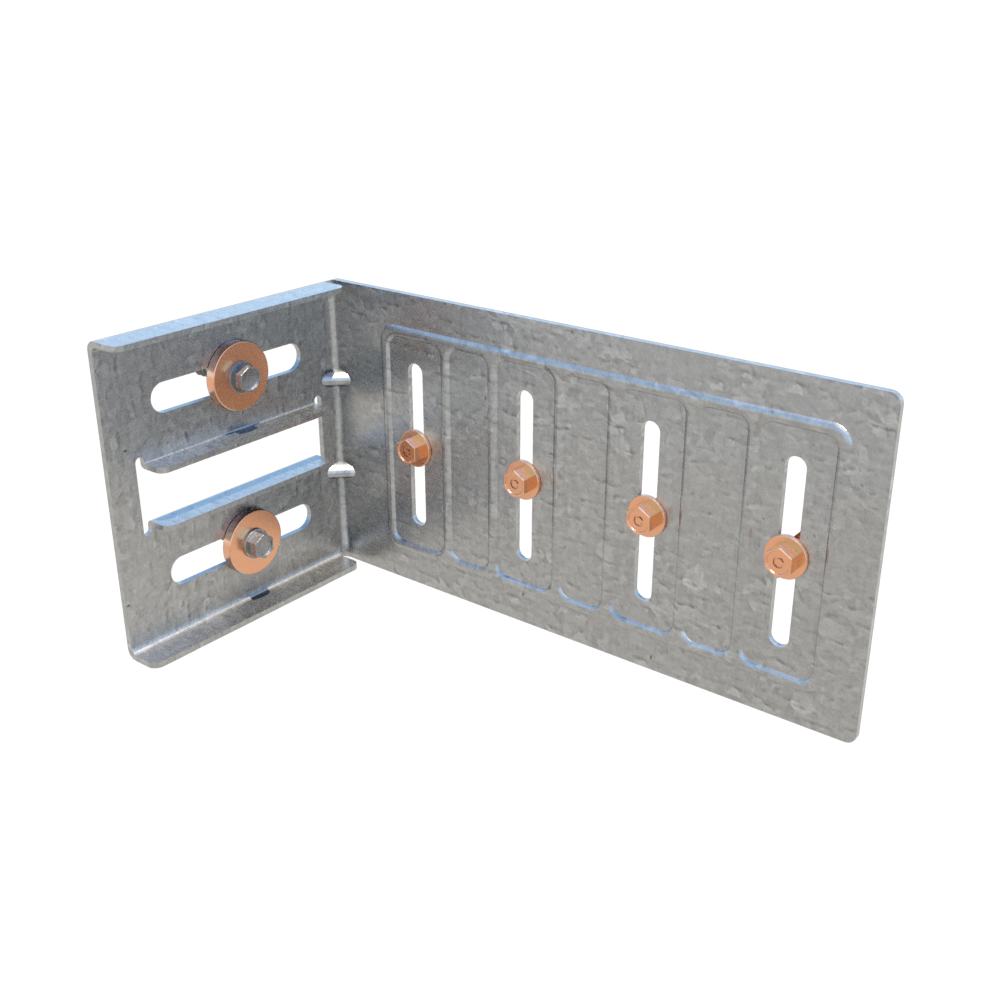

ClarkDietrich Drift FastClip™ Slide Clips are used to attach exterior curtain-wall studs to the building structure and provide for both vertical and lateral movement. Step bushing are provided for the connection to the structure and allow for 2" lateral deflection (1" left and right). ClarkDietrich deflection clips include our Proprietary Deflection Screw that has been specifically designed to provide friction-free deflection. These fasteners eliminate drag, binding or resistance that can often occur with common fasteners. U.S. Patent No. D814,905 Installation: To attach the clip to the cold-formed steel framing, two, three or four FastClip deflection screws (based upon clip size), shall be driven through the slotted holes and positioned to allow for the appropriate building deflection. Attachment to the primary structure can be made with screws, or bolt anchors. Structure attachments shall be driven through the drift bushings and the Drift FastClip™ - centered in the drift slots.

Product Information

  • Sold as 25 per bucket
  • Dimensions: 3-3/4" x 4" x 7-3/4" long (14ga)
  • Each clip comes with screws to attach it to the wall studs.
  • Deflection screw included (provides friction-free deflection).
  • Screws allow for a 2" vertical deflection (1" up and down).
  • Step bushings permit a 2" lateral deflection (1" left and right).
  • Copper Bushing for 14ga Clips.
