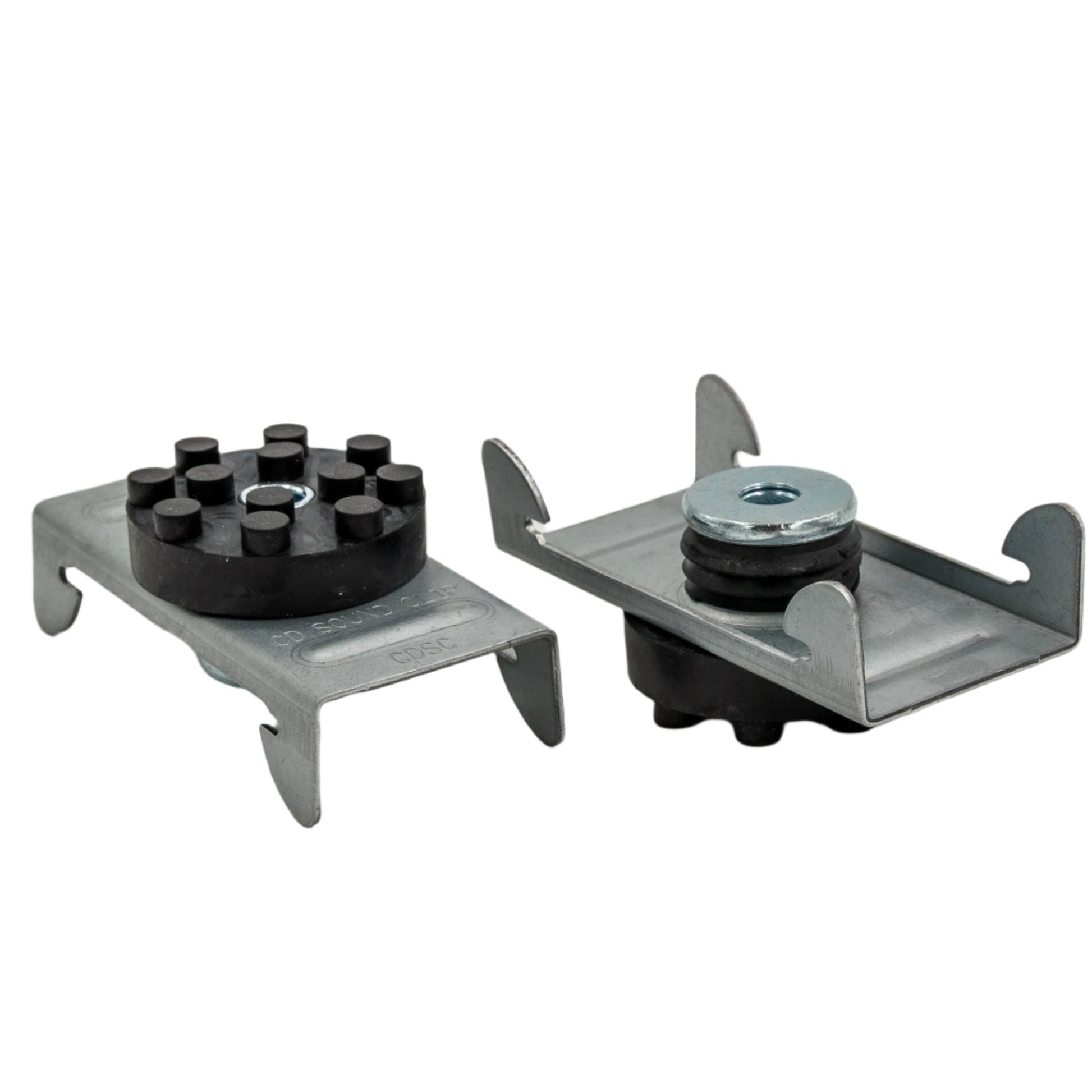

ClarkDietrich CDSC CLARKDIETRICH SOUND CLIP 3" x 1-1/4" x 43mils (18ga) (box of 100)

Product Description

The ClarkDietrich Sound Clip™ (CDSC) is designed to work alongside 18mil (25ga) 7/8" deep drywall furring channel. Its primary function is to securely attach gypsum wallboard (drywall) in a variety of wall and floor to ceiling applications while also providing effective acoustical separation. This innovative clip significantly diminishes airborne sound transmission from one room to another, thereby enhancing overall sound control within a building. Using the ClarkDietrich Sound Clip™ results in increased Sound Transmission Class (STC) ratings in the majority of assemblies, effectively reducing sound transfer and creating a more comfortable acoustic environment. Installation: For wooden studs- minimum #8 x 2-1/2" size coarse thread screw (recommend #12 or #10 x 2-1/2" hex head). For steel studs- minimum #8 x 1-1/2" size fine thread screw (recommend #12 or #10 x 1-5/8" hex head). Do not attach to framing members with nails (use approved screws only).

Product Information

• Sold as 100 per box
• Dimensions: 3" x 1-1/4" x 43mils (18ga)
• Ideal for use in multi-family dwelling, hotels, theaters and hospitals.
• Use with 7/8" 25 ga Furring Channel to create a total standoff from stud of 1-5/8".
• UL fire rated for most common assemblies- Complies to UL 263 test standards. See full list of UL® design assemblies in UL R19331.
• Maximum spacing 48" o.c. (laterally) x 24"o.c. (vertically).
• Maximum design load is 36 lbs.
• Sound testing for type X & type C boards.
