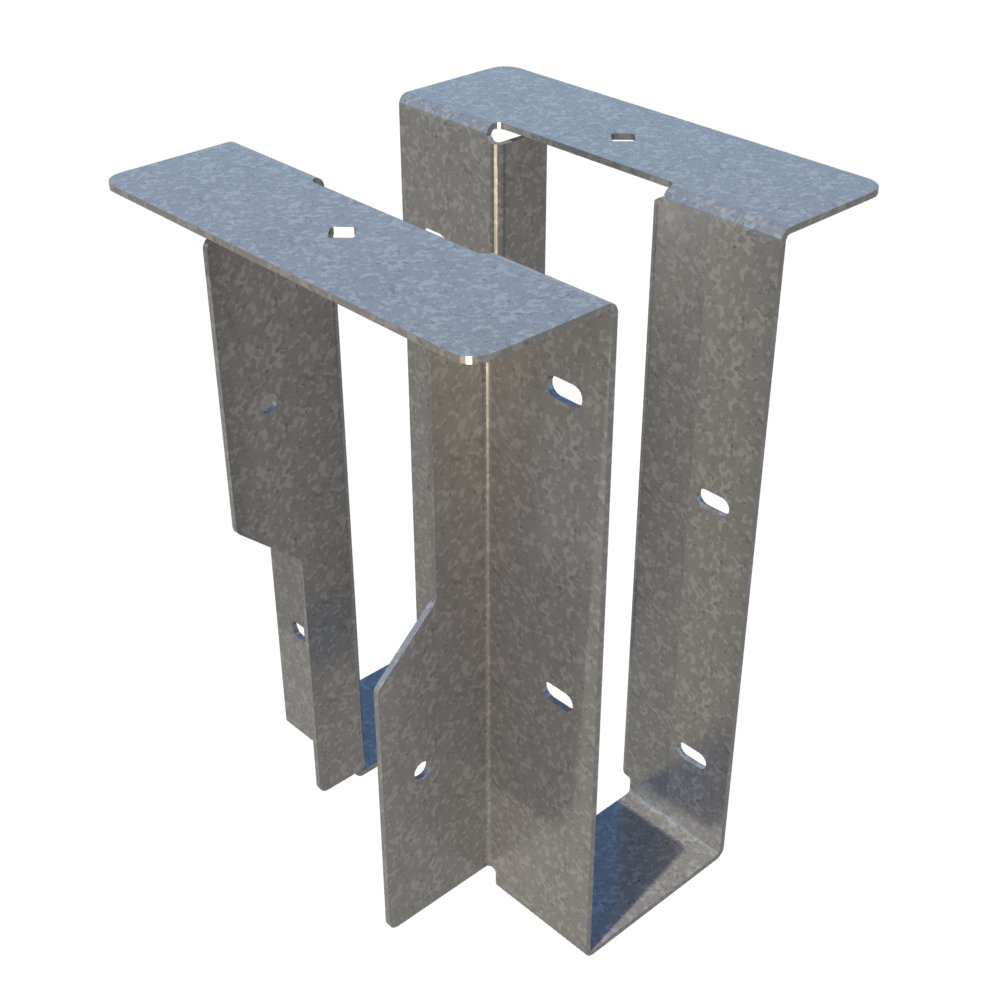

ClarkDietrich CDPHD26 PURLIN HANGER 5-6/16" x 3-13/16" x 1-9/16" x 1-9/16" x 43mils (18ga)

ClarkDietrich CDPHD26 PURLIN HANGER 5-6/16" x 3-13/16" x 1-9/16" x 1-9/16" x 43mils (18ga)

Regular price $3.61 USD
Regular price Sale price $3.61 USD
Sale Sold out

Product Description

Designed specifically for agricultural and post-frame use, ClarkDietrich Purlin hangers excel in performance and versatility, offering ease-of-use across a range of applications. All hangers provide multiple installation methods, giving users maximum flexibility. Both double-shear and straight nailing options are available, and these hangers come equipped with placement tooth or placement nail options for simplified installation. Installation Guidelines: 1- Utilize all specified fasteners as indicated in the manufacturer's published table. 2- Drive 3" nails at a 45-degree angle through the purlin into the header, and combine with top and face nails to achieve the specified loads. 3- Drive 1-1/2" nails into the purlin at a 90-degree angle, and combine with top and face nails to meet the specified load requirements.

Product Information

  • Sold per piece
  • Dimensions: 5-6/16" x 3-13/16" x 1-9/16" x 1-9/16" x 43mils (18ga)
  • For agricultural and post-frame use.
  • Multiple installation methods- double-shear and straight nailing.
  • Placement tooth for easy install.
  • G90 galvanized coating.

Product Use Cases
