ClarkDietrich

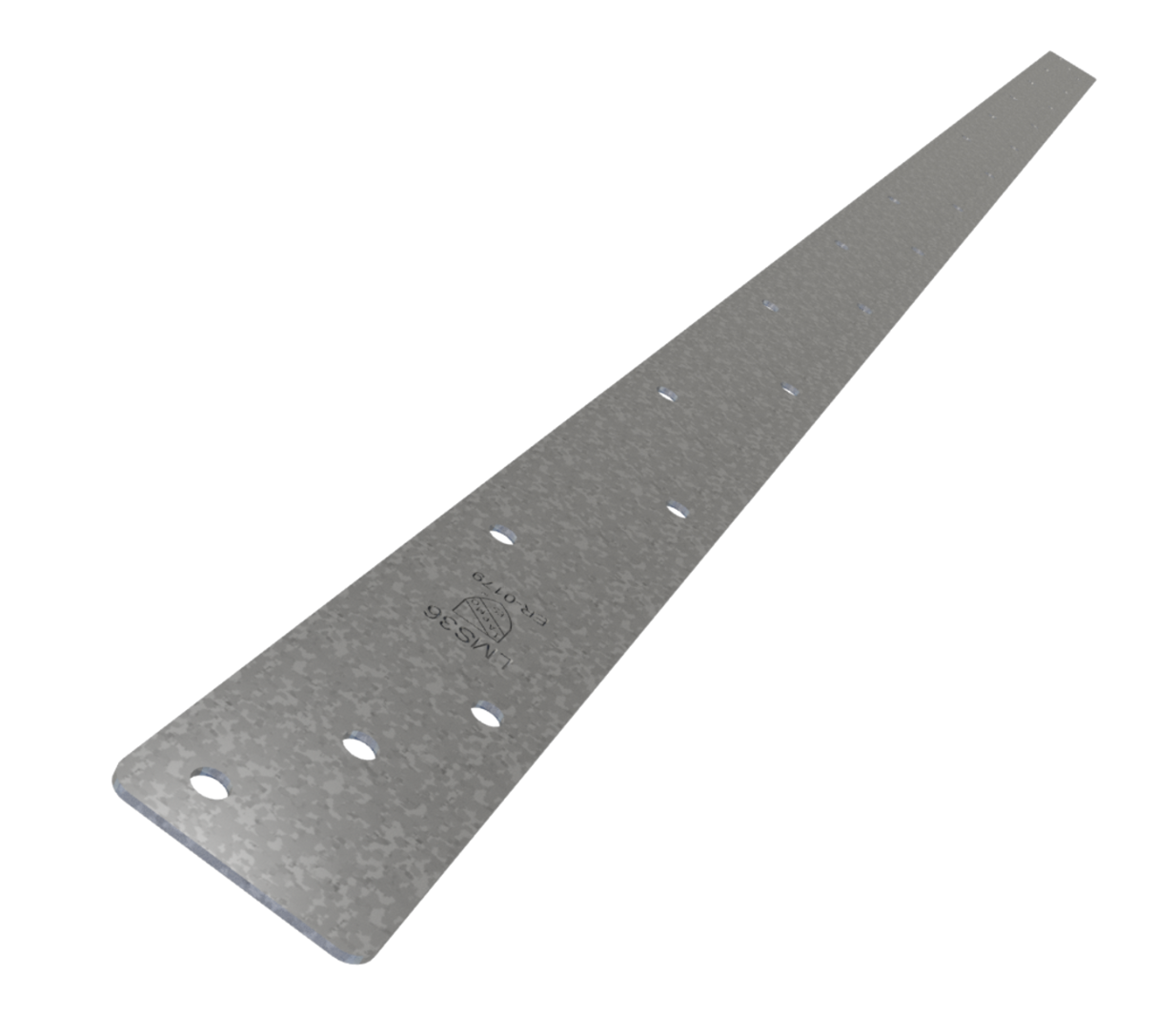

ClarkDietrich CDMS36G MEDIUM STRAP G-185 36-5/8" x 1-1/4" x 54mils (16ga) G185

ClarkDietrich CDMS36G MEDIUM STRAP G-185 36-5/8" x 1-1/4" x 54mils (16ga) G185

Regular price $4.49 USD
Regular price Sale price $4.49 USD
Sale Sold out

Product Description

These medium strap metal connectors are manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members. CDMS Medium Straps are 1-1/4" wide. Straps are available in lengths from 21-5/8" to 39-5/8". Three holes are located at 3/4" on center, in a diagonal pattern, at each end of the strap. Remaining holes are punched at 1-1/2" on center, in a diagonal pattern. There is a 3" long section with no holes in the middle of each strap. Common use cases include butt joints between two framing members and floor-to-floor or floor-to-roof connections as hurricane ties for establishing a continuous load path from roof to foundation. These are 16 gauge straps. Material: 16ga (54mil), 0.0566" Design thickness, 0.0538" Minimum thickness Coating: G90 (Z275) hot-dipped galvanized coating (G185 available except on CDMS27, CDMS33 & CDMS39) Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

Product Information

  • Sold per piece
  • Dimensions: 36-5/8" x 1-1/4" x 54mils (16ga) G185
  • Designed to resist tension load.
  • Use for solid sawn lumber and structural composite lumber.
  • Connect metal plate connected trusses, framing members, and wall members.
  • G185 galvanized coating.
