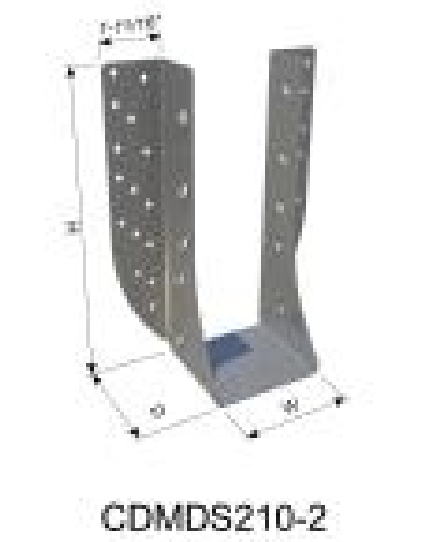

ClarkDietrich CDMDS210-2 DOUBLE SHEAR FACE-MOUNT HANGER 8-13/16" x 3-3/16" x 3-1/4" x 54mils (16ga)

Product Description

The ClarkDietrich CDMDS series hangers feature double shear nailing to effectively distribute loads at two points along the joist nails, reducing hardware usage and improving installation times. Follow the manufacturer's enhanced nailing schedule for increased load-carrying capacities. To achieve the published loads, it's essential to use the specified quantity of joist nails and drive them at an angle into the joist or truss. Please note that these hangers are not intended for welded applications. The varied sizing of these hangers accommodate different joist configurations.

Product Information

• Sold per piece
• Dimensions: 8-13/16" x 3-3/16" x 3-1/4" x 54mils (16ga)
• Superior load distribution.
• Reduced hardware required.
• Available for various joist configurations.
• G90 galvanized coating.

Product Use Cases
