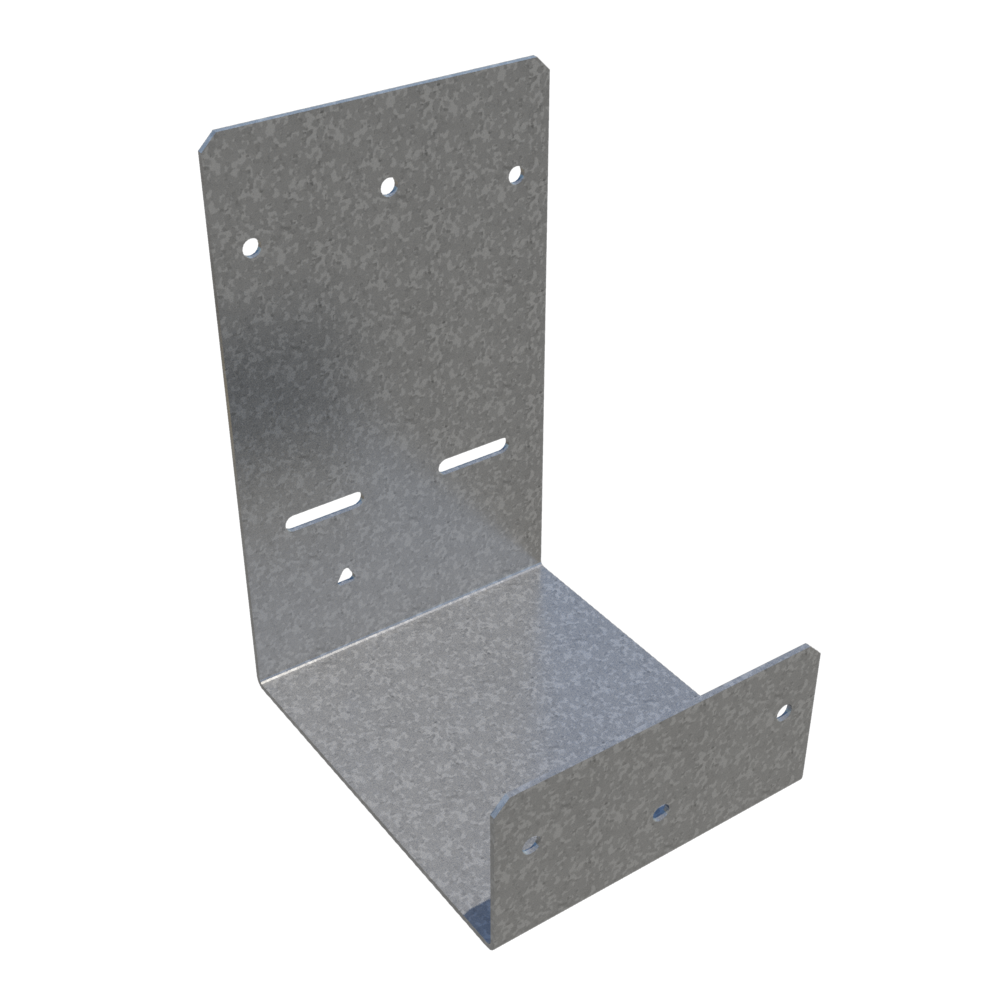

ClarkDietrich CDLSC32 LOAD SHARE CLIP 2-7/16" x 1-1/2" x 3" x 43mils (18ga)

Product Description

The CDLSC load share clip series is manufactured to transfer loads between two truss or framing ply members made of solid sawn or structural composite lumber. Truss roof systems are an excellent choice for adding strength and stiffness to building structures. Choosing a truss system for your building can be a great choice in hurricane-prone regions. Pre-punched slots enable on-site bending for installation. Learn more about the advantages of truss systems in our blog. Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness Coating: G90 (Z275) hot-dipped galvanized coating Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

Product Information

• Sold per piece
• Dimensions: 2-7/16" x 1-1/2" x 3" x 43mils (18ga)
• Transfer load between two trusses.
• Pre-cut slots allow on-site bending for installation.
• Can be installed at multiple points along length of trusses.
• G90 galvanized coating.
