ClarkDietrich CDLMS30G MEDIUM STRAP G-185 30-5/8" x 1-1/4" x 43mils (18ga) G185

ClarkDietrich CDLMS30G MEDIUM STRAP G-185 30-5/8" x 1-1/4" x 43mils (18ga) G185

Regular price $3.91 USD
Regular price Sale price $3.91 USD
Sale Sold out

Product Description

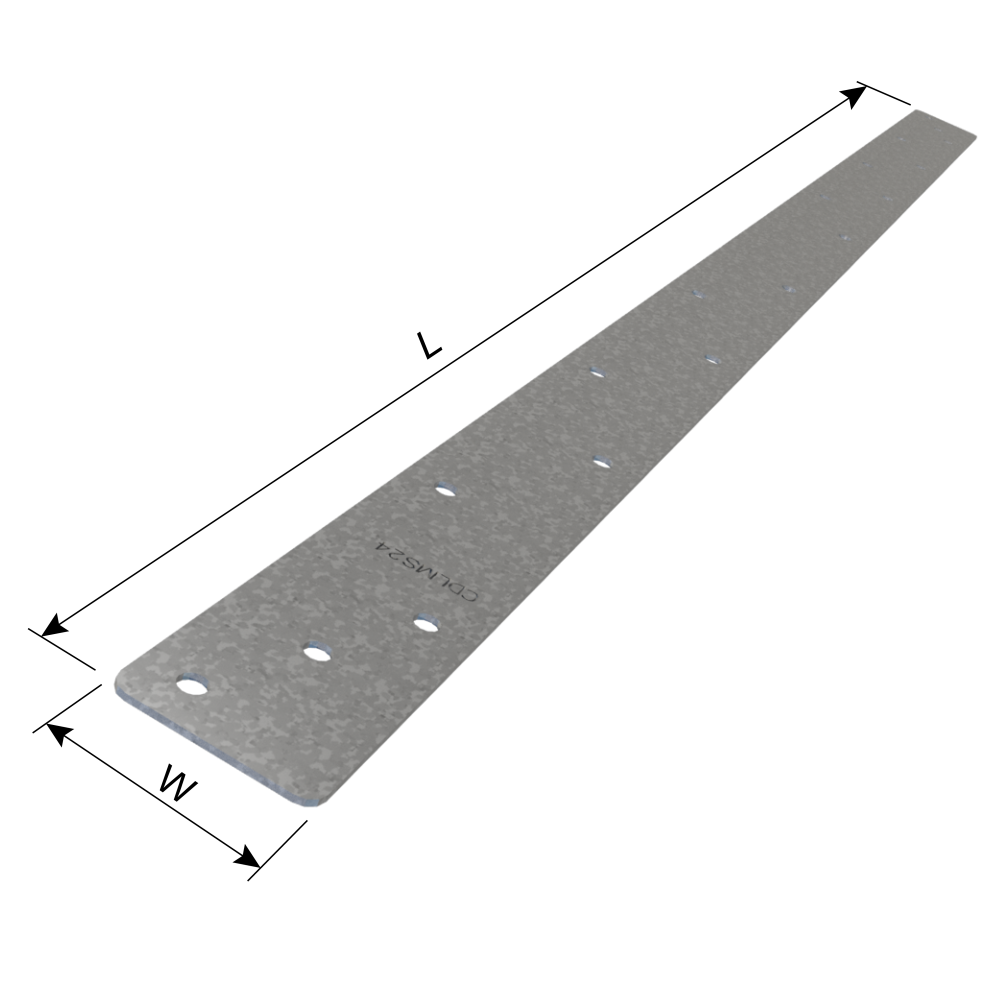

These medium strap metal connectors are manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members. CDLMS Medium Straps are 1-1/4" wide. Straps are available in lengths from 9-5/8" to 36-5/8". Three holes are located at 3/4" on center, in a diagonal pattern, at each end of the strap. Remaining holes are punched at 1-1/2" on center, in a diagonal pattern. There is a 3" long section with no holes in the middle of each strap. Common use cases include butt joints between two framing members and floor-to-floor or floor-to-roof connections as hurricane ties for establishing a continuous load path from roof to foundation. These are 18 gauge straps. Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness Coating: G90 (Z275) hot-dipped galvanized coating (G185 available except CDLMS33) Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

Product Information

  • Sold per piece
  • Dimensions: 30-5/8" x 1-1/4" x 43mils (18ga) G185
  • Designed to resist tension load.
  • Use for solid sawn lumber and structural composite lumber.
  • Connect metal plate connected trusses, framing members, and wall members.
  • G185 galvanized coating.
