ClarkDietrich

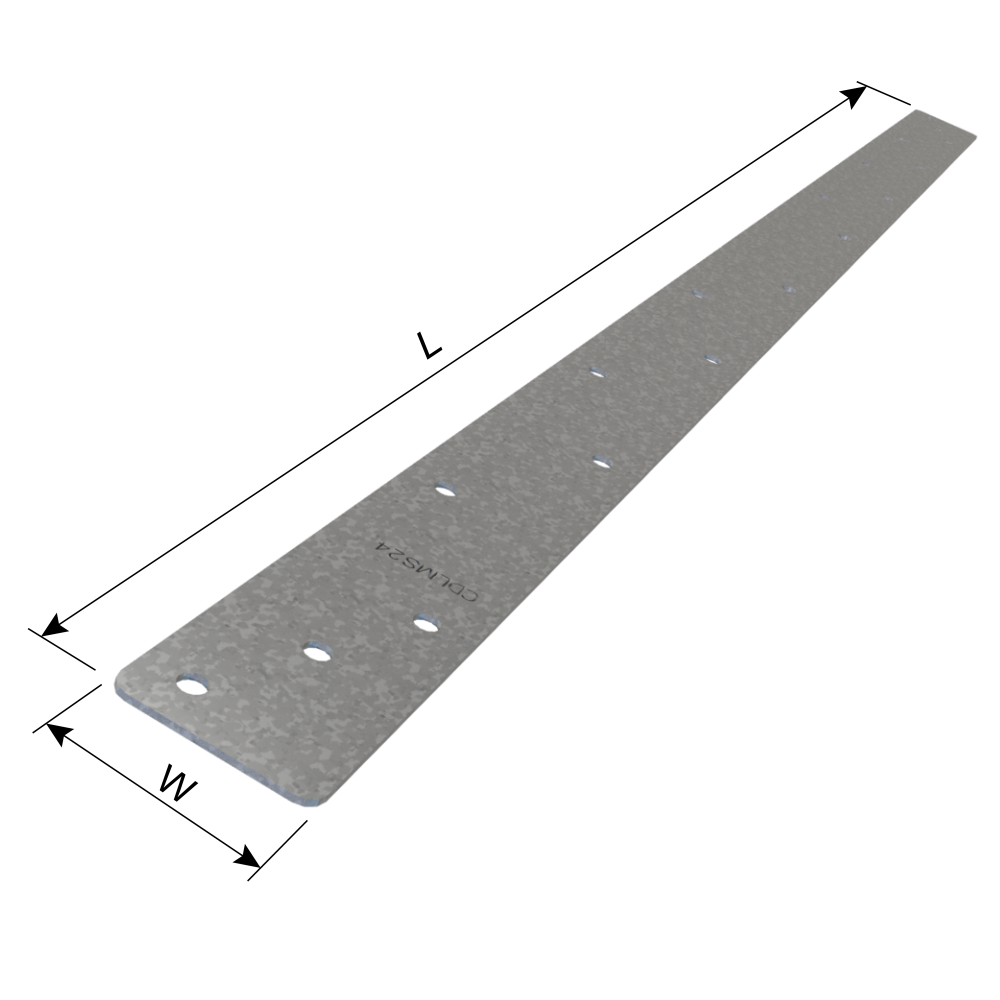

ClarkDietrich CDLMS15G MEDIUM STRAP G-185 15-5/8" x 1-1/4" x 43mils (18ga) G185

ClarkDietrich CDLMS15G MEDIUM STRAP G-185 15-5/8" x 1-1/4" x 43mils (18ga) G185

Regular price $0.17 USD
Regular price Sale price $0.17 USD
Sale Sold out

Product Description

ClarkDietrich Medium Strap metal connectors are fabricated to withstand tension loads when fastened to solid sawn or structural composite lumber, including metal plate-connected trusses, framing members, and wall components. With a width of 1-1/4", CDLMS Medium Straps are available in lengths ranging from 9-5/8" to 36-5/8". Each strap features three holes positioned at 3/4" on center in a diagonal pattern at both ends, with additional holes along the length of the strap punched at 1-1/2" on center also in a diagonal arrangement. Please note there is a 3" section in the middle of each strap without any holes. These 18-gauge straps find common applications in butt joints between framing members and for floor-to-floor or floor-to-roof connections, helping to establish a continuous load path from the roof to the foundation.

Product Information

  • Sold per piece
  • Dimensions: 15-5/8" x 1-1/4" x 43mils (18ga) G185
  • Designed to resist tension load.
  • Use for solid sawn lumber and structural composite lumber.
  • Connect metal plate connected trusses, framing members, and wall members.
  • G185 galvanized coating.
