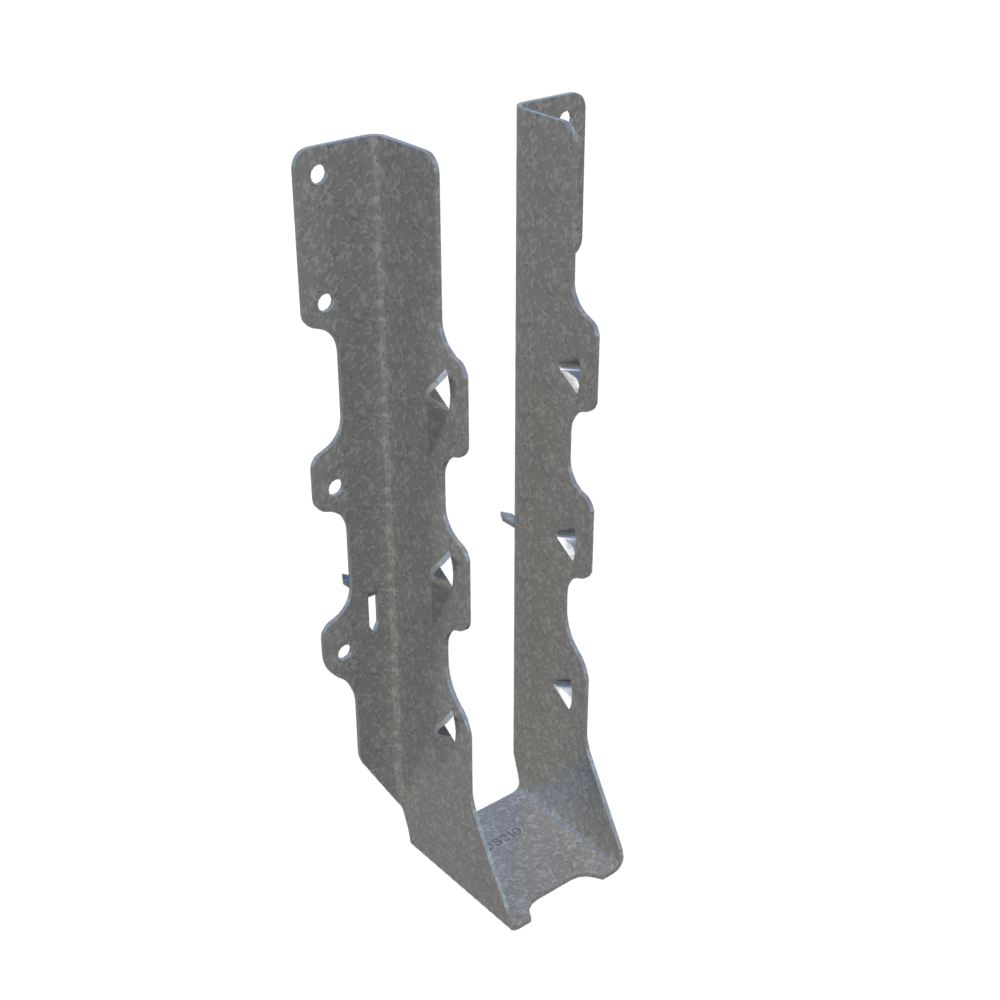

ClarkDietrich CDLDS210 FACE MOUNT HANGER 8-5/32" x 1-9/16" x 1-15/16" x 43mils (18ga)

Product Description

The ClarkDietrich CDLDS series hangers feature a placement tooth for improved installation experience. Follow the manufacturer's enhanced nailing schedule for increased load-carrying capacities. Double shear nailing effectively distributes loads at two points along the joist nails, reducing hardware usage and improving installation times. To achieve the published loads, it's essential to use the specified quantity of joist nails and drive them at an angle into the joist or truss. Please note that these hangers are not intended for welded applications.

Product Information

• Sold per piece
• Dimensions: 8-5/32" x 1-9/16" x 1-15/16" x 43mils (18ga)
• Placement tooth ensures easy installation.
• Superior load distribution across joint.
• Reduced hardware for equivalent load capacity.
• G90 galvanized coating.
