ClarkDietrich

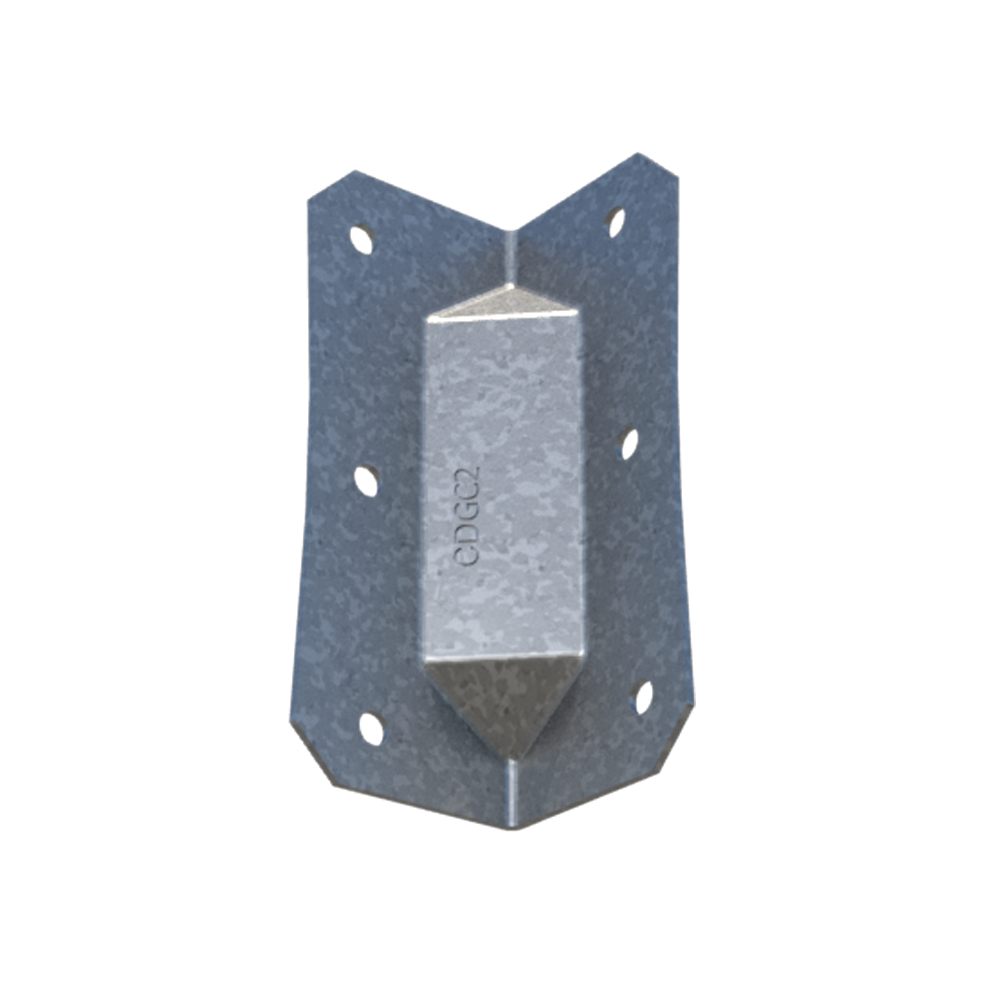

ClarkDietrich CDGC2 - GUSSET CLIP 1-19/64" x 1-19/64" x 3-5/16" x 43mils (18ga)

ClarkDietrich CDGC2 - GUSSET CLIP 1-19/64" x 1-19/64" x 3-5/16" x 43mils (18ga)

Regular price $0.79 USD
Regular price Sale price $0.79 USD
Sale Sold out

Product Description

These one-piece gusset clips provide improved corner stability for a variety of applications. The CDGC1 and CDGC2 are commonly attached to truss gables and can be installed into wood. These clips provide lateral wind resistance. These are pre-punched clips with nail holes provided to speed up installation. Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness Coating: G90 (Z275) hot-dipped galvanized coating Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

Product Information

  • Sold per piece
  • Dimensions: 1-19/64" x 1-19/64" x 3-5/16" x 43mils (18ga)
  • Pre-punched for speed/convenience.
  • Stabilize corner connections.
  • G90 galvanized coating.
  • Improved lateral wind resistance.

Alternative Products

  • Angle Clips
  • Additional Resources

    Link to manufacturer website.

    Link to submittals.

    Link to collection.

    View full details
