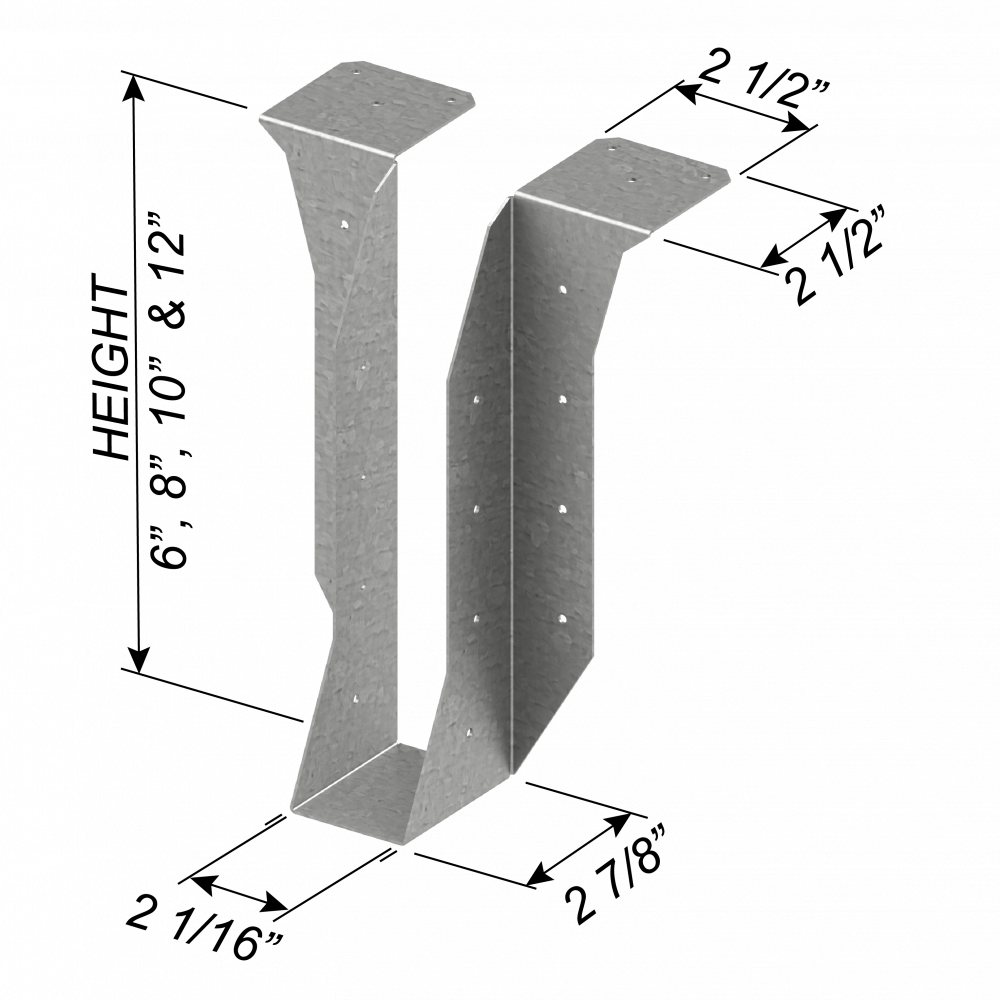

ClarkDietrich CDBV 2" X 8" 14 GA BRIDLE HANGER 8" x 2" x 68mils (14ga) (box of 20)

ClarkDietrich CDBV 2" X 8" 14 GA BRIDLE HANGER 8" x 2" x 68mils (14ga) (box of 20)

Regular price $154.00 USD
Regular price Sale price $154.00 USD
Sale Sold out

Product Description

CDBV and CDMB series bridle hangers can be used to attach light-gauge C-joist flooring systems to structural steel beams or wood ledgers. Single and double-wide bridle hangers are available in various widths and depths. A variety of connection methods are possible with screws, powder-actuated fasteners, drill-in concrete anchors or welding. Installation: Attach bridle hanger to the primary frame as specified. When welding the hanger to the primary frame, a minimum of 1/8" x 2" fillet weld on each top flange is required. Distribute the weld equally on both top flanges. Uplift loads do not apply to weld on applications. Place joist into hanger and secure with fasteners. If bridle hanger is less than beam depth, provide back blocking.

Product Information

  • Sold as 20 per box
  • Dimensions: 8" x 2" x 68mils (14ga)
  • For attachment of light-gauge C-joists.
  • Attach to structural steel beams or wood ledgers.
  • Thickness: 68mils (14 gauge), 97 mils (12 gauge) also available- see CDMB models.
