ClarkDietrich CDAHU46 FACE-MOUNT HANGER 5-1/2" x 3-9/16" x 2-3/4" x 43mils (18ga)

Product Description

CDAHU is a series of face-mount medium duty joist and truss hangers designed for wood plate trusses and heavily loaded members with a 2-3/4" seat dimension. These hangers are useful for both trusses and rafters. Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness Coating: G90 (Z275) hot-dipped galvanized coating (G185 available) Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

Product Information

• Sold per piece

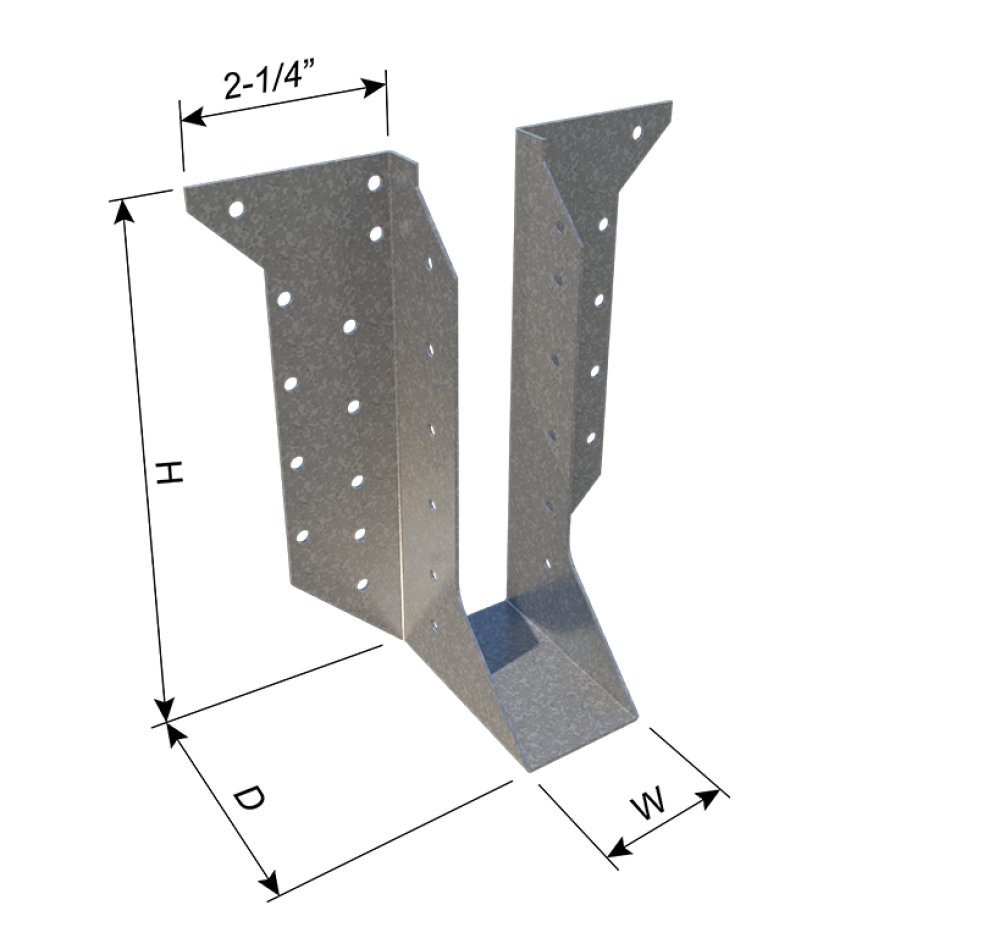

• Dimensions: 5-1/2" x 3-9/16" x 2-3/4" x 43mils (18ga)
• Variations sized for singles and doubles, 2x4, 2x6, 2x8 (see product dimensions).
• Useful for both trusses and rafters.
• G90 galvanized coating.

Alternative Products

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
