ClarkDietrich

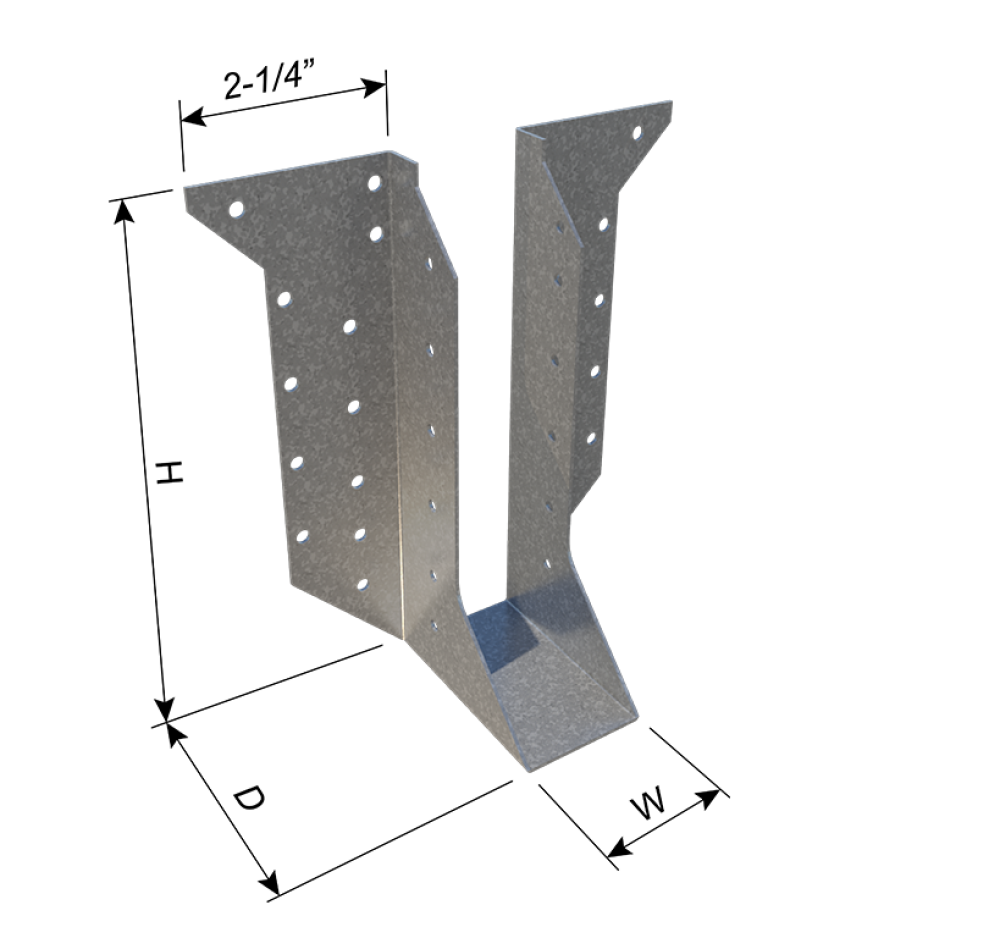

ClarkDietrich CDAHU28 FACE-MOUNT HANGER 6-1/2" x 1-9/16" x 2-3/4" x 43mils (18ga)

ClarkDietrich CDAHU28 FACE-MOUNT HANGER 6-1/2" x 1-9/16" x 2-3/4" x 43mils (18ga)

Regular price $7.50 USD
Regular price Sale price $7.50 USD
Sale Sold out

Product Description

ClarkDietrich CDAHU hangers are face-mount medium duty joist and truss hangers designed for wood plate trusses and heavily loaded members. These hangers feature a 2-3/4" seat dimension. ClarkDietrich CDAHU hangers are factory pre-punched, enabling quick and efficient on-site installation. These hangers are useful for both trusses and ceiling joists.

Product Information

  • Sold per piece
  • Dimensions: 6-1/2" x 1-9/16" x 2-3/4" x 43mils (18ga)
  • Variations sized for singles and doubles, 2x4, 2x6, 2x8 (see product dimensions).
  • Useful for both trusses and ceiling joists.
  • G90 galvanized coating.
