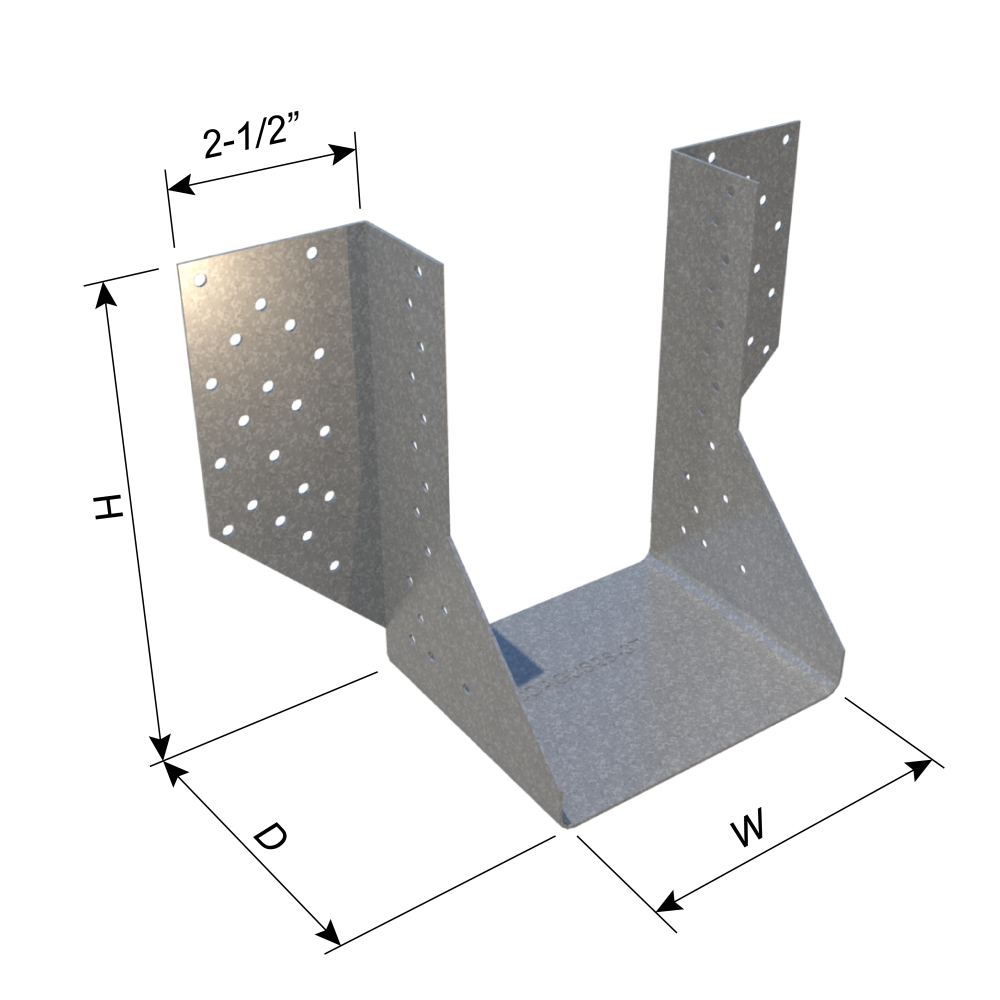

ClarkDietrich CDAGUS28-2T 12GA HEAVY DUTY HANGER 3-7/16" x 6-15/16" x 4-1/4" x 97mil (12ga)

Product Description

CDAGUS universal face-mount hangers are heavy duty joist and truss hangers designed for wood plate trusses and heavily loaded members. The feature set of these hangers is particularly advantageous for engineered trusses with long runs and heavy load specifications. The 4" seat dimension featured in these hangers provides the greatest bearing area of any hanger available today. Additionally, the super capacity design loads are the highest of any universal face-mounted hanger on market. The larger header flange and joist seat make installation of this hanger easily achievable with common nails. Material: 12ga (97mil), 0.1017" Design thickness, 0.0966" Minimum thickness Coating: G90 (Z275) hot-dipped galvanized coating Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

Product Information

• Sold per piece
• Dimensions: 3-7/16" x 6-15/16" x 4-1/4" x 97mil (12ga)
• Heavy duty applications.
• Hang trusses or heavily loaded members.
• Variations sized for 2xs, double 2xs, triple 2xs (see product dimensions).
• Superior super capacity design loads.
• Easy to install with common nails.
