ClarkDietrich BTC3-54 BRIDGING TERMINATION CLIP 3-5/6" x 3-1/16" x 54 mils (16ga) (bucket of 100)

Product Description

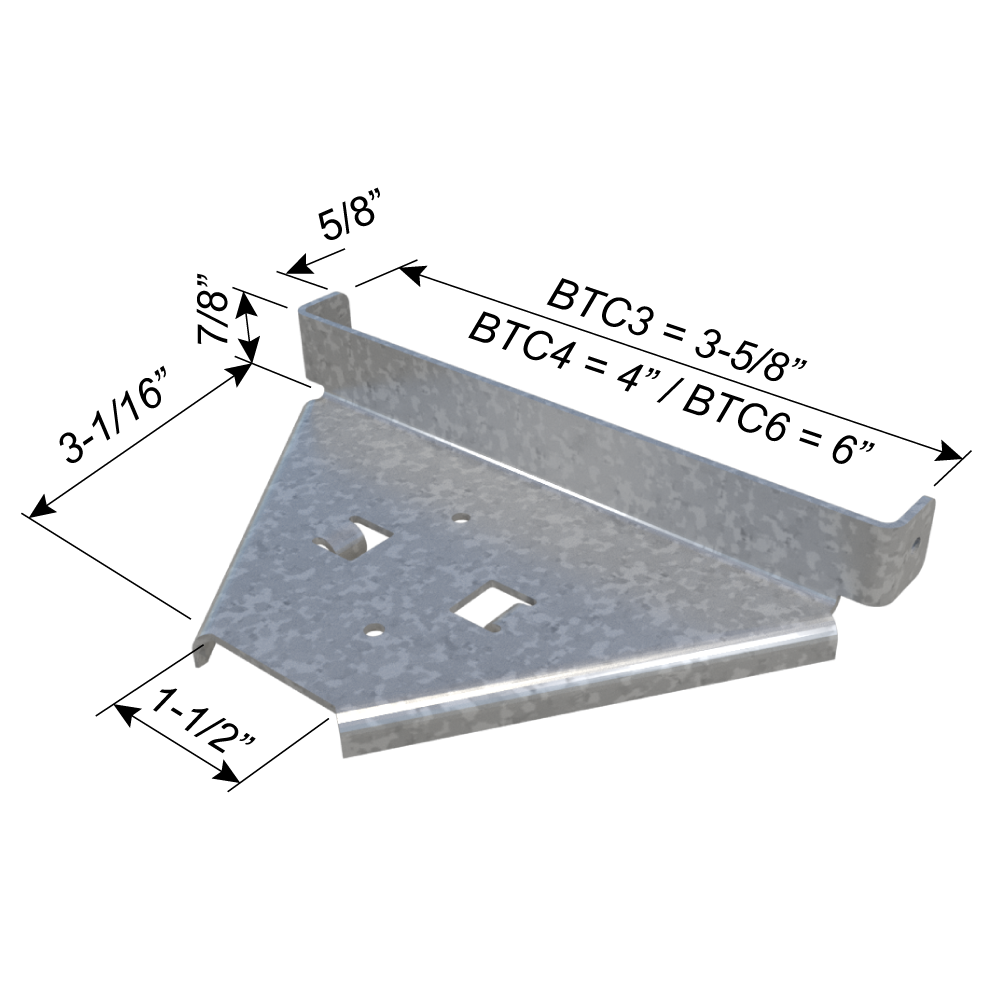

The ClarkDietrich Bridging Termination Clip is a stiffened, G90 galvanized steel clip used to secure U-Channel or Cold Rolled Channel (CRC) to structural wall studs when used in load-bearing or curtain wall applications. The unique design of the Bridging Termination Clip allows for quicker installation in end-of-wall conditions. Briding Termination Clips are fastened using #8 self-drilling screws. Proper installation requires 2 screws between clip and U-channel and 2 screws between clip and stud flanges. ClarkDietrich Bridging Termination Clips are designed to be used with 3-5/8”, 4” or 6” structural studs only. Installation: Install the BTC by sliding the flanges of the clip over the open side of the stud and positioning the clip over the CRC using the guides on the underside of the clip. Once in place, fasten to the CRC using #8 screws. Finally, fasten the flanges of the clip to the stud flange by using #8 screws.

Product Information

• Sold as 100 per bucket
• Dimensions: 3-5/6" x 3-1/16" x 54 mils (16ga)
• Fasten with #8 self-drilling screws.
• Used to install 1-1/2" U-Channel lateral bracing.
• Quicker installation in end-of-wall conditions.
• For 3-5/8" studs (also available for 4" and 6" studs).
• Thickness: 54mils (16ga) available in other gauges.
