ClarkDietrich BTC3-43 BRIDGING TERMINATION CLIP 3-5/6" x 3-1/16" x 43 mils (18ga) (bucket of 100)

Product Description

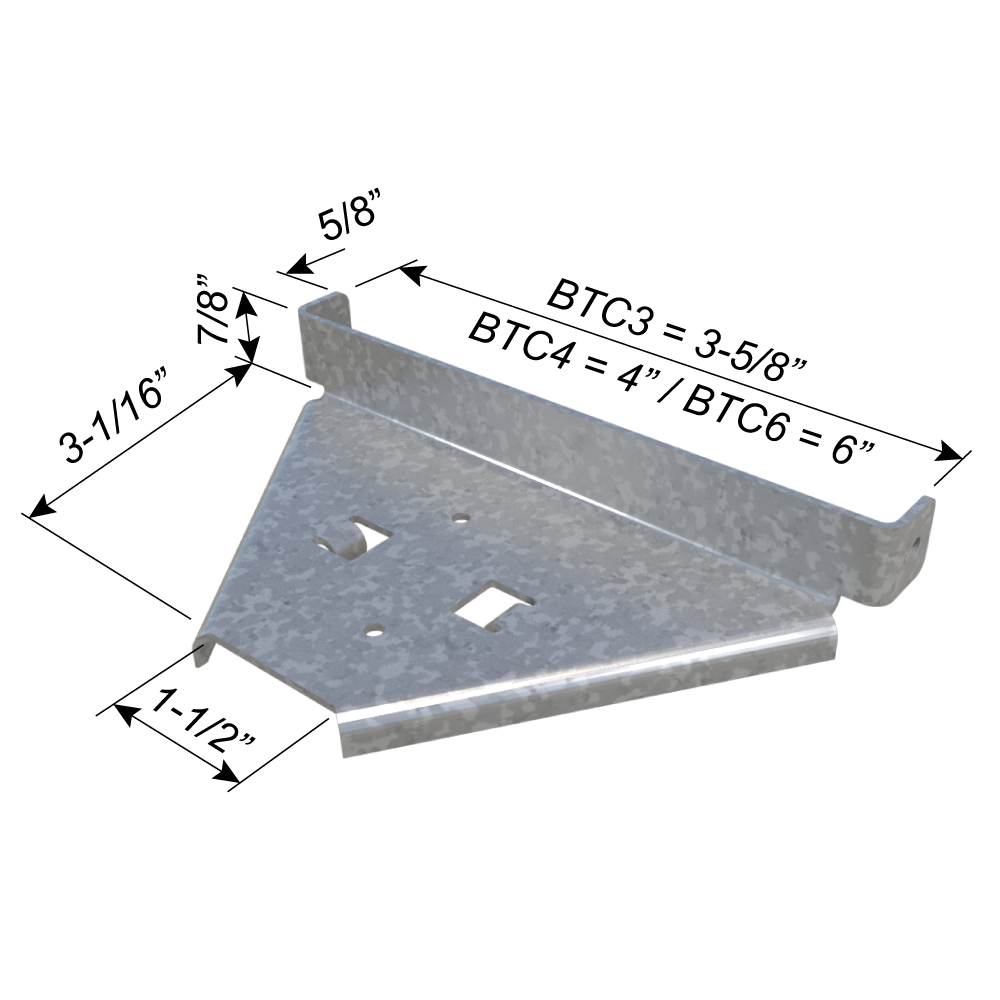

The ClarkDietrich Bridging Termination Clip is a stiffened steel clip with a unique geometry that allows for quicker installation in end-of-wall conditions. This clip is used for connecting U-Channel or Cold Rolled Channel (CRC) to structural wall studs when used in either load-bearing or curtain wall applications. Bridging Termination Clips are designed for use with 3-5/8”, 4” or 6” structural studs only. Installation: Install the BTC by sliding the flanges of the clip over the open side of the stud and positioning the clip over the CRC using the guides on the underside of the clip. Once in place, fasten to the CRC using #8 screws. Finally, fasten the flanges of the clip to the stud flange by using #8 screws. Proper installation requires 2 screws between clip and U-channel and 2 screws between clip and stud flanges.

Product Information

• Sold as 100 per bucket
• Dimensions: 3-5/6" x 3-1/16" x 43 mils (18ga)
• Fasten with #8 self-drilling screws.
• Install U-Channel or CRC in end-of-wall conditions.
• For 3-5/8" studs (also available for 4" and 6" studs).
• Thickness: 43mils (18ga) available in other gauges.
