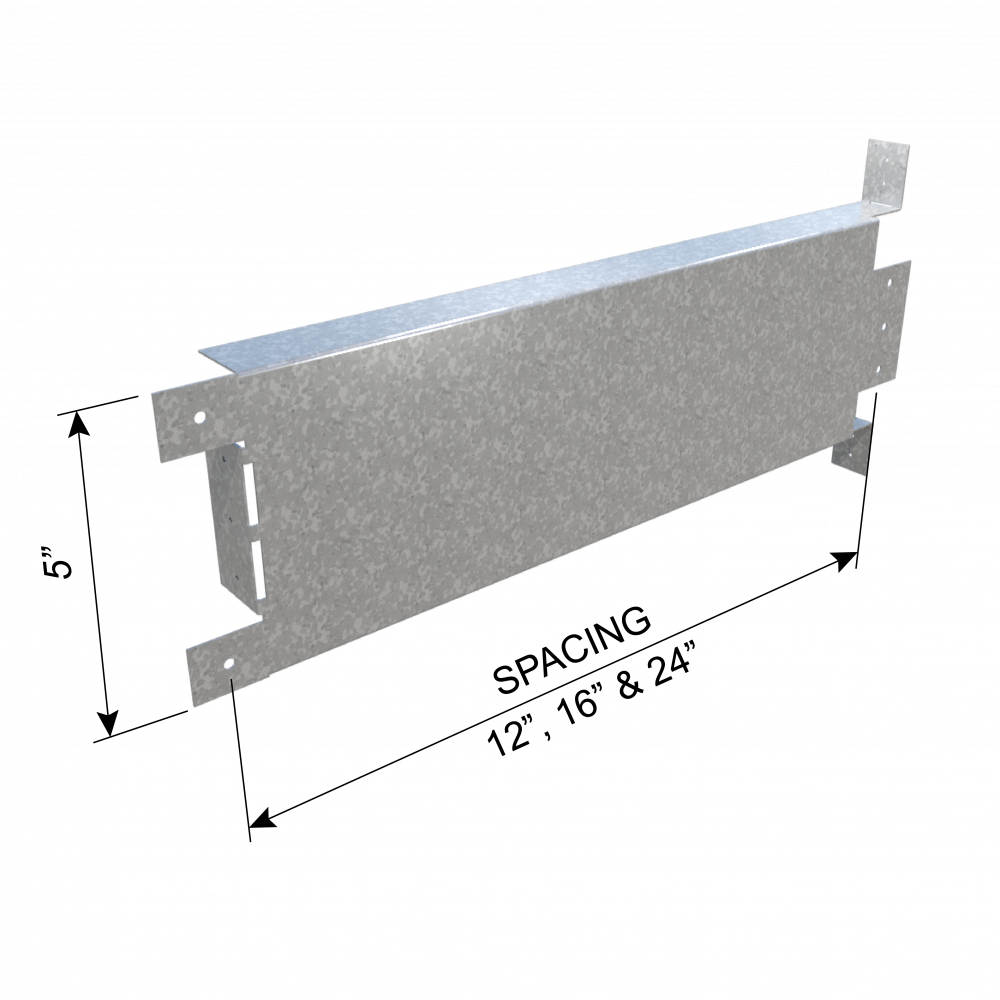

ClarkDietrich BB12 - CDBS BACKER BAR 12 12" x 5" x 33 mils (20ga)

ClarkDietrich BB12 - CDBS BACKER BAR 12 12" x 5" x 33 mils (20ga)

Regular price $6.66 USD
Regular price Sale price $6.66 USD
Sale Sold out

Product Description

This Backer Bar was specifically designed as a superior solution for attaching multiple items or heavy items to interior partitions. This design that is patented by Bailey® and manufactured/distributed in the USA by ClarkDietrich® provides superior connection shear and pullout strength for handrails, shelves and other wall fixtures. Building projects often require solutions that allow the attachment of heavy products and accessories to interior curtain/partition walls. This backer bar is designed for excellent performance on both non-structural and structural studs. Examples of typical applications for backer bars include wall-mounted TVs, load-bearing handrails for accessibilty, towel bars, and cabinets or shelving. Installation: Bend center tab along slotted holes inward to lay flush against outer face of metal stud web when installed. On the other end of the Backer Bar, bend small tabs along slotted holes outward to lay flush against inner face of metal stud web when installed. Secure the Backer Bar to the metal studs with (5) #8 wafer head/pan head screws at pre-punched holes in to flange of stud.

Product Information

  • Sold per piece
  • Dimensions: 12" x 5" x 33 mils (20ga)
  • Installs quickly and easily.
  • Thickness: 33mils (20 gauge).
  • Length: 12" (also available for 16" and 24" spacing).
  • For use on non-structural and structural studs.
  • Useful for heavy TVs, handrails, cabinetry.
