ClarkDietrich A683 END CLIP (UNP) 14 GA 3" x 3" x 3" x 68 mils (14ga) (bucket of 100)
ClarkDietrich A683 END CLIP (UNP) 14 GA 3" x 3" x 3" x 68 mils (14ga) (bucket of 100)
Couldn't load pickup availability
Product Description
EasyClip™ A-Series™ End Clips are often used to reinforce connections in knee-wall applications or alternatively to reinforce jamb stud connections to the primary frame. A-Series clips are unpunched because the appropriate number and placement of fasteners will vary based on desired application. Installation: Easy Clip™ A-Series™ End Clips are attached to cold-formed steel framing members using #10 minimum self-drilling screws. Clips can also be welded to the cold-formed steel framing. Connections to the building frame can be made with powder-actuated fasteners, drill-in concrete anchors or welding. When using the tabular values for a welded clip, provide a full weld to the structure, top to bottom, along the outside of the clip. A 3/4" minimum weld to the outside edge of the 3" leg is also recommended to control warping or to hold the clip in place before final welding.
Product Information
- Sold as 100 per bucket

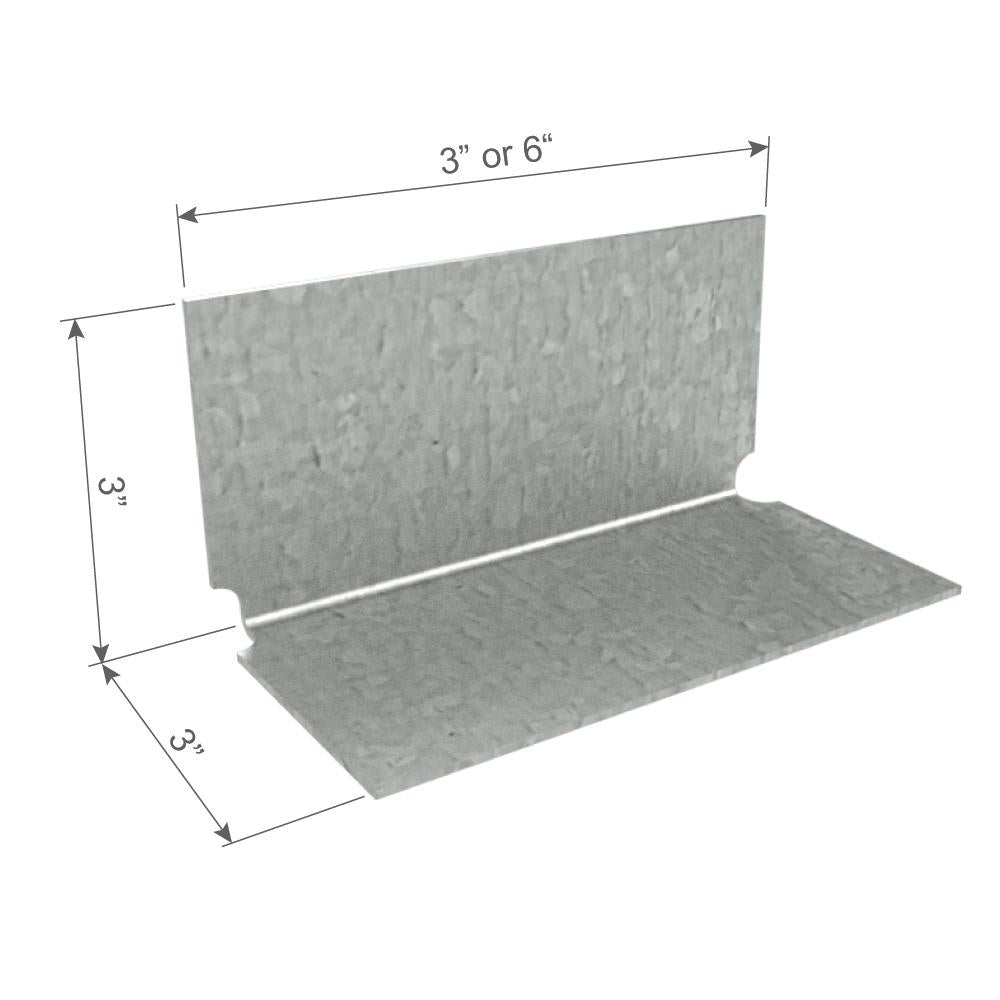

- Dimensions: 3" x 3" x 3" x 68 mils (14ga)
- 3" x 3" legs.
- A-Series™ clips are unpunched.
- Use #10 self-drilling screws (minimum).
- Length: 3" (6" also available).
- Thickness: 68 mils (14 ga) also available in other gauges.
