ClarkDietrich

ClarkDietrich 6 WEB 24IN OC BLAZEFRAME® SHIELD 20G - FS624-33 24" x 6" x 33 mils (20ga)

ClarkDietrich 6 WEB 24IN OC BLAZEFRAME® SHIELD 20G - FS624-33 24" x 6" x 33 mils (20ga)

Regular price $13.31 USD
Regular price Sale price $13.31 USD
Sale Sold out

Product Description

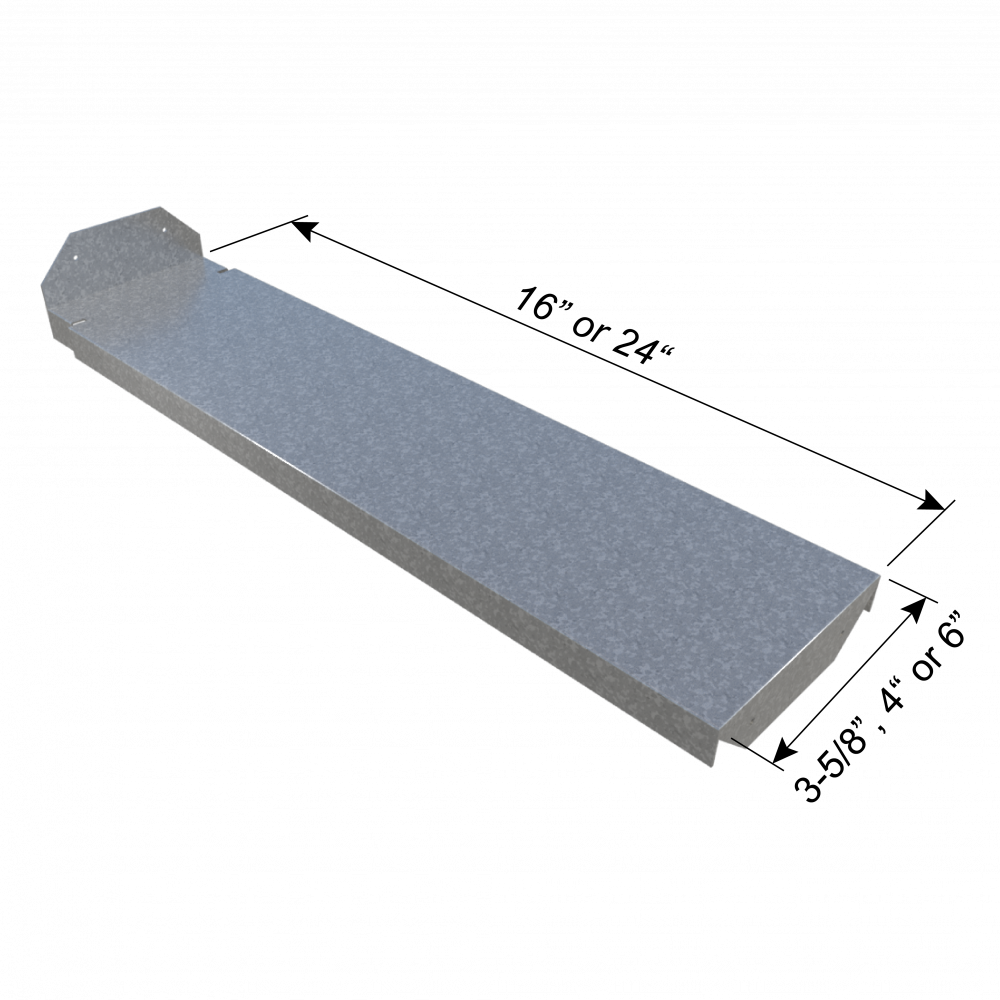

ClarkDietrich’s BlazeFrame Shield is specifically designed for use in conjunction with approved fireblocking materials per section 718 of the IBC. BlazeFrame Shield installs quickly by twisting into stud flanges and screwing into stud webs. The one piece pre-formed assembly allows for efficient installation by eliminating cutting, notching and attaching clips. The BlazeFrame Shield is available in three widths for both 16" and 24" stud spacing. The BlazeFrame Shield is pre-notched for use on structural studs with a 1-5/8" flange.

Product Information

  • Sold per piece
  • Dimensions: 24" x 6" x 33 mils (20ga)
  • Installs quickly and easily without clips.
  • For 24" stud spacing (16" also available).
  • 6" width (3-5/8" and 4" also available).
  • Thickness: 54mil (20ga) also available in other gauges.
  • Pre-notched for use on structural studs (1-5/8" flange only).

Alternative Products

  • Fire Blocking
  • Additional Resources

    Link to manufacturer website.

    Link to submittals.

    Link to collection.

    View full details
