ClarkDietrich 1125JB24 11-1/4" FLOOR JOIST BLOCKING 24" O.C. 24" x 11-1/4" x 54 mils (16ga) (box of 10)

Product Description

TradeReady Floor Joist Blocking is one of the primary components that make up the TradeReady floor bracing system. TradeReady Blocking features a large extruded hole to accommodate HVAC, mechanical, plumbing and sprinkler runs. TradeReady Blocking is pre-cut and formed to fit securely between the floor joists to prevent joist rotation. Pre-punched holes in the connection legs are added for quick attachment to each floor joist. Structural blocking is an economical alternative to TradeReady Structural Bridging(TDSB) or Flat Strapping. Floor Joist Blocking is typically used in conjunction with a continuous row of TradeReady Structural Bridging (TDSB) that ties the floor system to the structure allowing bracing against lateral movement. Installing blocking not only helps to prevent joist rotation, but also aids with load distribution, and can help reduce noise transmission by adding mass and preventing movement of framing members. Installation: Place the notched end of the TradeReady Blocking inside the open side of one floor joist. Attached each end of the TradeReady Blocking to each floor joist with (2) #10-16 screws in pre-punched holes.

Product Information

• Sold as 10 per box

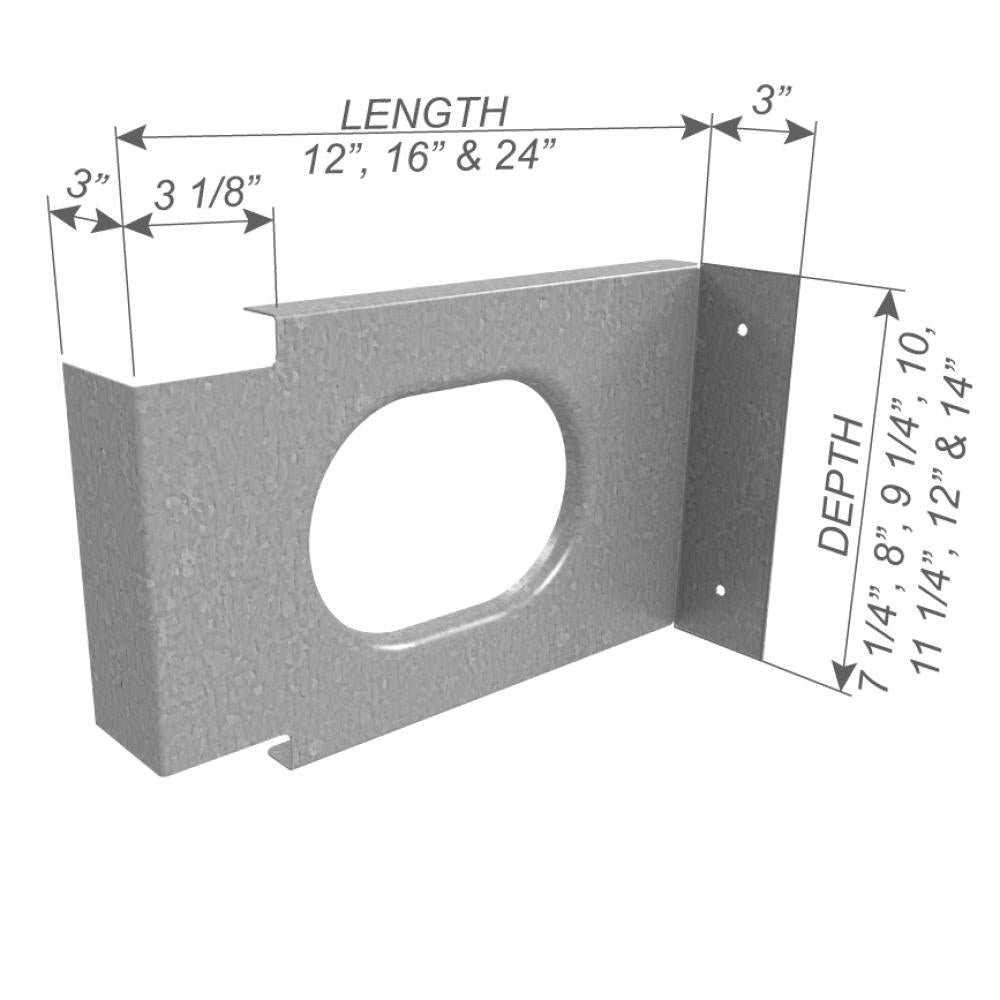

• Dimensions: 24" x 11-1/4" x 54 mils (16ga)
• Part of the TradeReady floor bracing system.
• Pre-cut to fit 24" joist spacing.
• Thickness: 54mils (16ga)
• Pre-punched holes for quick attachment to floor joists.
• For 11-1/4” deep members.
• 6-1/2” x 9” service hole.
