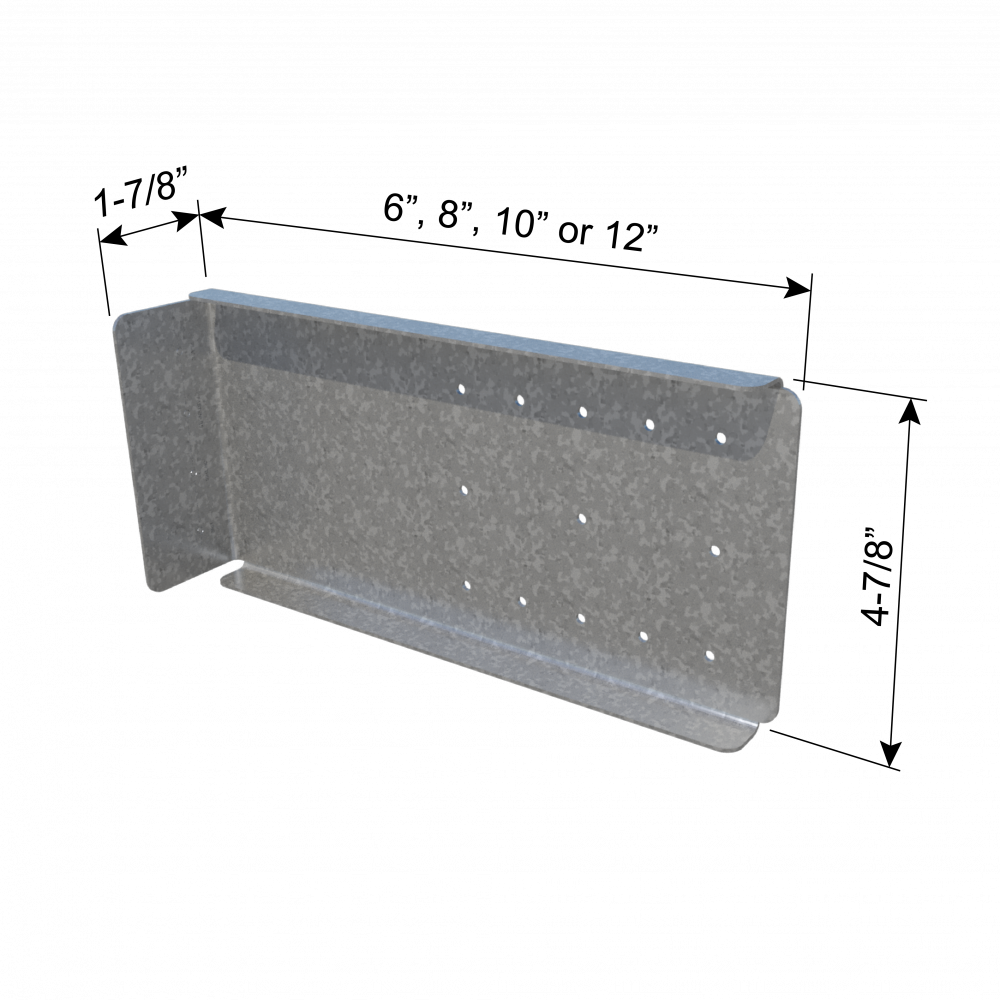

ClarkDietrich UXRC8 UNI-CLIP™ EXT RIGID CLIP 4-7/8" x 8" x 1-7/8" x 68mils (14ga) (bucket of 25)

Product Description

ClarkDietrich’s Extended Uni-Clip™ offers a robust solution for rigid attachment of exterior wall studs to the primary building structure. Designed to transfer both horizontal and vertical loads, these extended rigid clips can be installed easily using screws, powder-actuated fasteners, or welding. These clips are particularly well-suited for medium and large standoff conditions, providing exceptional support and stability. Installation: 1- Attach the Extended Uni-Clip rigid clips to the cold-formed steel (CFS) framing members using #12 self-drilling screws at minimum, inserting the screws through the clip holes and driving them into the steel framing. Follow the specified fastener placement patterns in manufacturer's published table to ensure compliance with allowable load requirements. 2- Connection to the primary building structure can also be established using powder-actuated fasteners or welds as per design requirements.

Product Information

• Sold as 25 per bucket
• Dimensions: 4-7/8" x 8" x 1-7/8" x 68mils (14ga)
• Rigid connection of exterior wall studs to primary structure.
• Ideal for medium to large standoff conditions.
• G90 galvanized coating.
