The Steel Network (SL362-400_s3lg_b2d) VertiClip® SL w/ 3" Slots - Exterior Head of Wall Deflection Connector for Light Steel Framing (box of 50)

Product Description

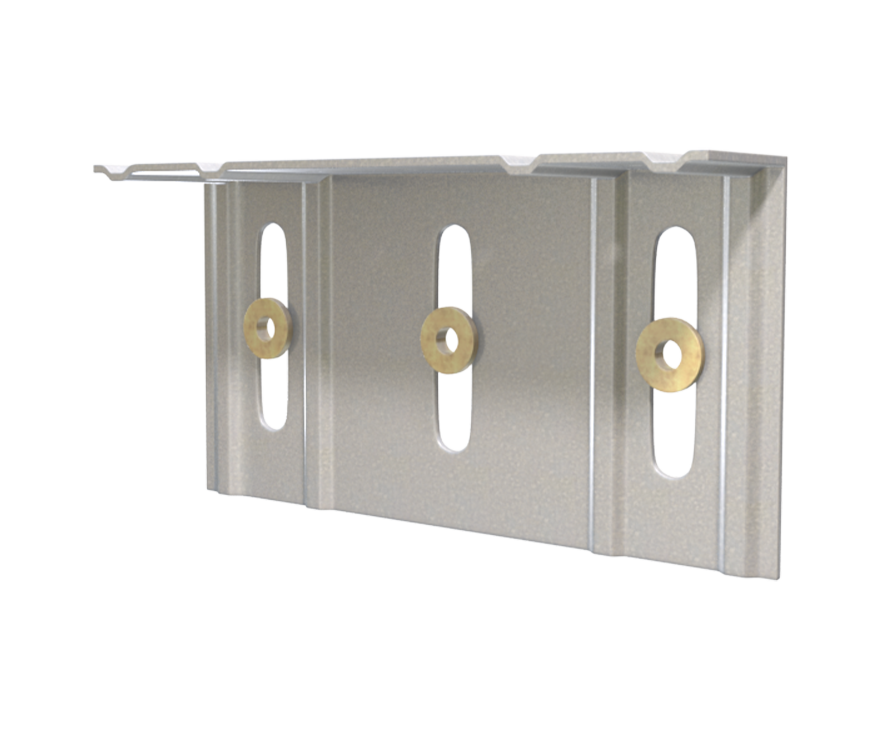

The VertiClip® SL is a slide angle clip specifically designed to connect exterior cold-formed steel curtain wall studs to the primary structure at the head of the wall, accommodating up to 3” of vertical deflection (2” up and 1" down). With TSN’s patented Step Bushing Technology, this slide angle clip ensures a smooth, friction-free connection between the clip and the stud web surface, preventing seizure and maintaining structural integrity.

Product Information

• Sold as 50 per box
• Dimensions:
• Purpose: Connects curtain wall studs to the primary structure, allowing vertical deflection up to 2" up and 1" down.
• ICC-ES Approved: Report #ESR-2049 for certified performance.
• Friction-Free Motion: Patented Step Bushing Technology for smooth deflection.
• Load-Rated Attachment: Secure mechanical connection at each stud with load-rated #12 screws.
• Eliminates Extra Components: No need for loose friction-held assemblies, deep-leg tracks, or top-row bridging.
• Durable Construction: Made from 50ksi, 68mil, G90 cold-formed steel.
• Integrated Solution: Component in the VertiTrack® VTX pre-assembled deflection track system.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
