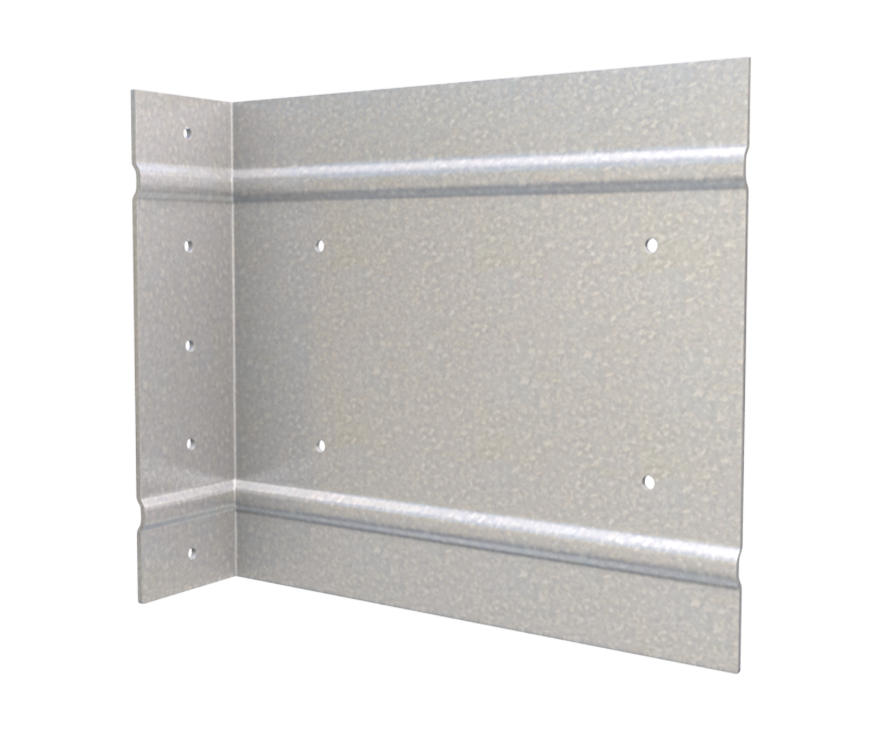

The Steel Network (LB362-400) StiffClip® LB - Multi-Purpose/ Spandrel Rigid Clip Connector for Cold-Formed Steel Framing 3-5/8" x 5" x 1-1/2" x 68mils (14ga) (box of 50)

Product Description

The StiffClip® LB Series is designed to securely connect exterior wall studs to a building’s structure, offering enhanced bending strength through its unique stiffened 90° angle legs. Capable of resisting both horizontal and vertical loads, this clip provides a reliable and efficient connection solution. Available in various lengths to accommodate construction tolerances, the StiffClip® LB replaces the need for expensive bracing, simplifying your construction process. With pre-drilled guide holes for precise attachment and structural load testing, the StiffClip® LB Series ensures a strong and stable connection for your building’s exterior walls.

Product Information

• Sold as 50 per box
• Dimensions: 3-5/8" x 5" x 1-1/2" x 68mils (14ga)
• Versatile Lengths: Available in various lengths to accommodate construction tolerance.
• Precision: Guide holes for accurate attachment to the structure and stud.
• Cost Efficiency: Replaces the need for expensive bracing.
• Load Tested: Structurally tested for reliable performance.
• Strength: Stiffened 90° angle legs increase bending strength.
