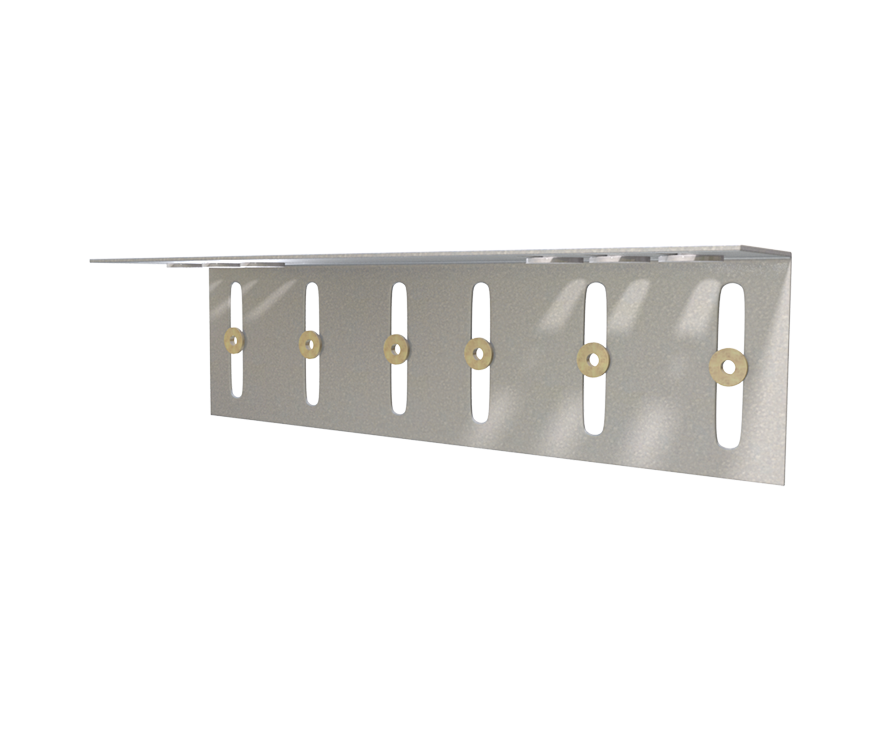

The Steel Network (DSLS600-20) DriftClip® DSLS - Exterior Bypass Structure Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing 20" x 3-1/4" x 3-1/4" x 97mils (12ga) (box of 25)

Product Description

The Drift Slide Angle Strut is designed to connect exterior cold-formed steel curtain wall studs to a structural steel frame, accommodating large stand-off conditions while bypassing the primary structure. It allows for up to 2 inches of vertical deflection (1 inch up and down) and 2 inches of lateral drift (1 inch left and right). Featuring TSN’s patented Step Bushing Technology, this strut ensures a friction-free, anti-seizure connection between the clip, stud web surface, and track. Compliant with ICC-ES standards and constructed from certified 50ksi, 97mil, G90 cold-formed steel, it offers a strong, efficient alternative to traditional assemblies and heavy deep-leg tracks.

Product Information

• Sold as 25 per box
• Dimensions: 20" x 3-1/4" x 3-1/4" x 97mils (12ga)
• Purpose: Connects curtain wall studs to structural steel frame with allowances for vertical and lateral movement.
• ICC-ES Approved: Report #ESR-2049 ensures compliance with building codes.
• Secure Attachment: Load-rated mechanical connection at each stud.
• Friction-Free Motion: Patented Step Bushing Technology for smooth vertical deflection.
• Efficient Design: Replaces loose assemblies, heavy track, and top wall bridging/strapping.
• Durable Construction: Made from certified, 50ksi, 97mil, G90 cold-formed steel.
