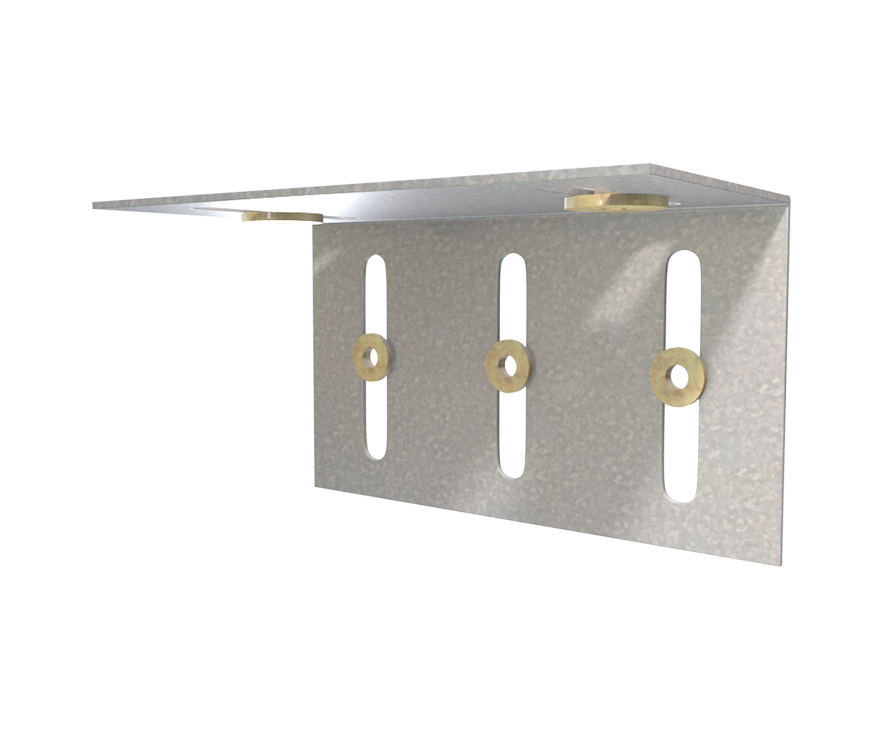

The Steel Network (DSL362-400-CA) DriftClip® DSL - Exterior Head of Wall Drift & Vertical Deflection Clip Connector for Cold-Formed Steel Framing (box of 50)

Product Description

The Drift Slide Angle is engineered to connect exterior cold-formed steel curtain wall studs to the slab at the head of the wall, accommodating up to 2 inches of vertical deflection (1 inch up and down) and 2 inches of lateral drift (1 inch left and right). Featuring TSN’s patented Step Bushing Technology, this connection ensures friction-free and smooth movement between the clip, stud web surface, and track. ICC-ES approved and load-rated, it offers a positive mechanical attachment at each stud, eliminating the need for loose friction-held assemblies and reducing the need for heavy deep-leg tracks and additional wall bridging.

Product Information

• Sold as 50 per box
• Dimensions:
• Purpose: Connects exterior steel curtain wall studs to slab at the head of a wall.
• Positive Attachment: Load-rated mechanical connection at each stud.
• Smooth Movement: Patented Step Bushing Technology for friction-free vertical deflection.
• Efficient Design: Replaces loose friction-held assemblies and heavy deep-leg tracks.
• Secure Fastening: Includes load-rated #12 screws for vertical deflection attachment.
• Durable Material: Manufactured from certified, 50ksi, 97 mil, G90 cold-formed steel.
• ICC-ES Approved: Report #ESR-2049 for compliance.
