The Steel Network (BC800) BridgeClip® - Clip Connector Secures Bridging Channel or CRC to Stud for Light Steel Framing 7-3/4" x 1-3/4" x 0-813/1000" x 43mils (18ga) (box of 100)

Product Description

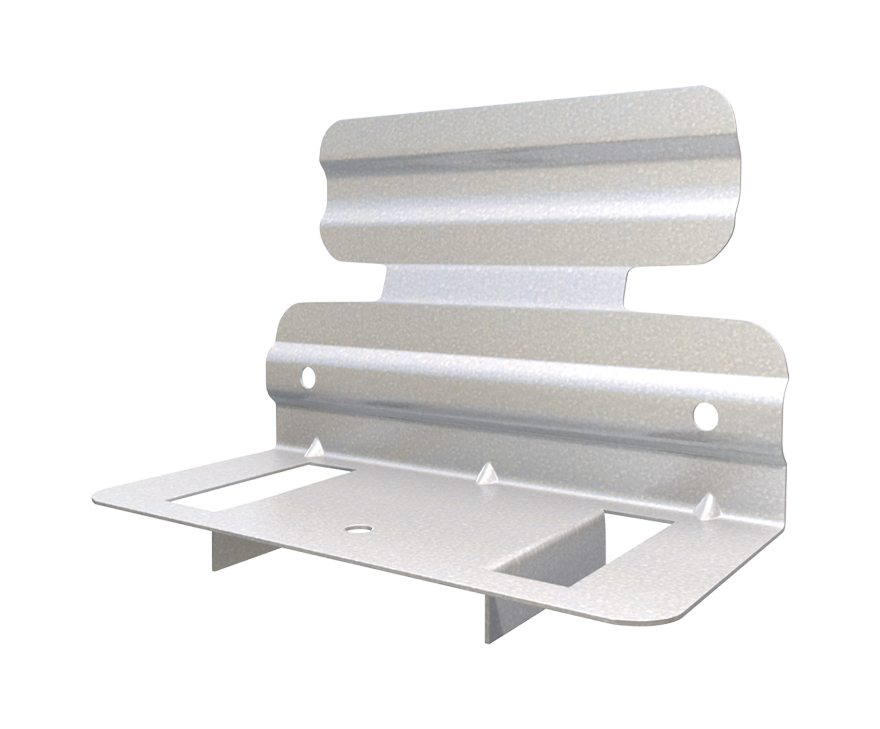

BridgeClip® is a robust and efficient solution designed to secure BridgeBar (BB150) or 1½” cold-rolled channel (CRC) to studs, effectively resisting both lateral and twisting loads. The innovative design features tabs on the bottom that clamp onto the BridgeBar® or CRC, while #10 screws are used to attach the clips securely to the channel and/or stud through pre-drilled guide holes. This design not only simplifies installation but also enhances load-bearing capacity, addressing challenges traditionally managed with generic L2x2x16ga. BridgeClip® streamlines the installation process, eliminates the need for clamping or welding, and is engineered for superior performance and safety.

Product Information

• Sold as 100 per box
• Dimensions: 7-3/4" x 1-3/4" x 0-813/1000" x 43mils (18ga)
• Secures BridgeBar (BB150) or 1½” CRC to studs, effectively resisting lateral and twisting loads.
• Fast installation
• No clamping or welding required
• Guide holes provided for quick and accurate fastener placement
• Rounded edges ensure safety during installation
• Labor-saving design: eliminates the need for cutting angle
• Manufactured from certified 50ksi steel with a G90 galvanized coating
• Available in 33 mil thickness (BC-33) and 43 mil thickness (BC-43, BC600 & BC800)
