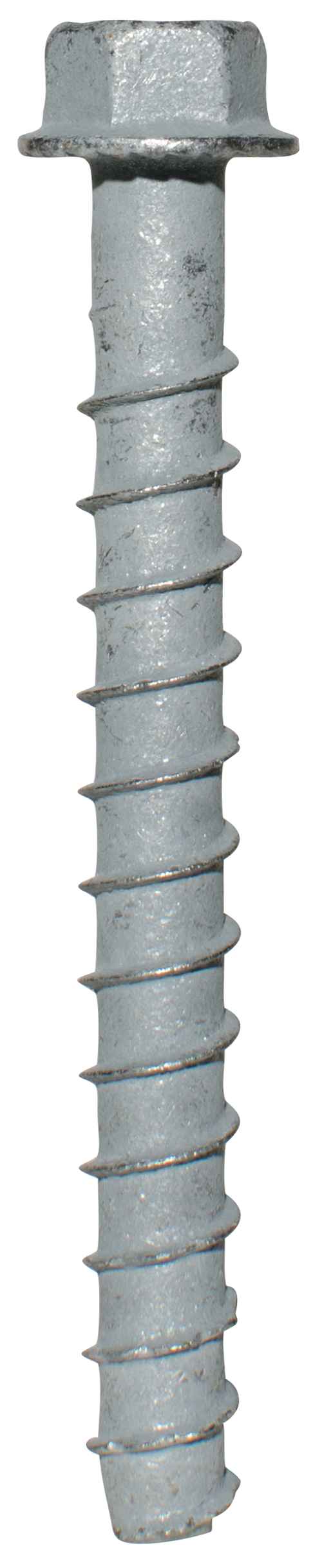

Simpson TITEN HD MG 1/2 X 6 1/2 Dims 6-1/2" x 1/2" (carton of 20)

Product Description

The Titen HD screw anchor series is designed for use in both cracked and uncracked concrete, as well as uncracked masonry. This series of anchor provides outstanding performance with low installation torque. This anchor series is intended for a wide variety of applications like seating, post bases, ledgers, sill plates, and other holdown applications. This anchor type is easy to remove when used in temporary applications such as bracing and formwork, or to allow for the relocation of a fixture. Features ASTM B695 Class 65 mechanically galvanized coating. Installation: Drill a hole in the base material concrete or masonry using a carbide drill bit that is the same diameter as the nominal diameter of the anchor to be installed. Drill the hole deep enough past embedment depth to allow thread tapping dust to settle inside hole. See manufacturer published overdrill depth table if needed. Blow dust clean. Insert anchor through fixture and into hole. Tighten anchor until the hex-washer head makes contact with the fixture.

Product Information

• Sold as 20 per carton
• Dimensions: 6-1/2" x 1/2"
• Features ASTM B695 Class 65 mechanically galvanized coating.
• Qualified for static, wind, and seismic loading conditions.
• Thread design undercuts for efficient load transfer to base material.
• Special heat treatment provides cutting tip hardness without compromising ductility.
• Use with standard drill bit: designed to install with ANSI tolerance drill bits.
• Hex-washer head does not require a separate washer unless required by code in some applications.
• Available in many standard fractional sizes.
