Simpson HURRICANE TIE 7-3/8" x 5-15/16" x 1-9/16" 18ga (43mils) (carton of 25)

Product Description

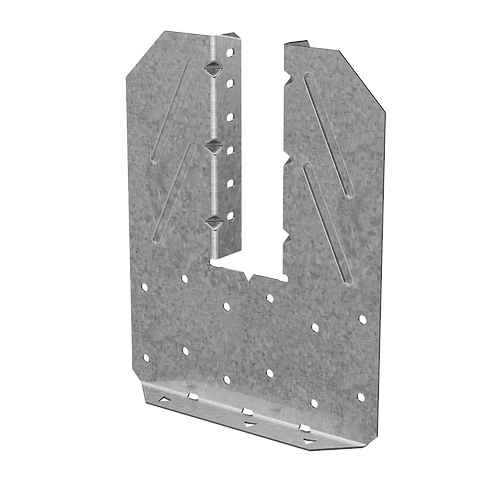

The Simpson Strong-Tie H14 Hurricane Tie is designed for high uplift load resistance in wood construction. The embossments on the H14 add stiffness in crucial areas for improved performance. These U-shaped hurricane ties that are specifically designed for coastal conditions are the go-to tie for high-wind areas. These ties provide a connection between the truss or rafter and the wall of the structure that helps resist wind and seismic forces. This clip is faster to install than using two single-sided ties. Use of additional fasteners into the top plates and rafter or truss provide higher uplift. The H14 comes with a pre-bent flange that attaches underneath the double top plate. This flange can be straightened to allow installation on a header. The H14 is made of 18 gauge steel and features a G90 galvanized finish. Installation: Install the H14 Hurricane Tie using all manufacturer specified fasteners. Position the pre-bent flange under the double top plate for a strong connection. Flange can be bent down for installation on headers. This clip is not a replacement for solid blocking. Avoid fastening through truss plates from behind to prevent performance issues.

Product Information

• Sold as 25 per carton
• Dimensions: 7-3/8" x 5-15/16" x 1-9/16" 18ga (43mils)
• Made from 18-gauge steel with a G90 galvanized finish for durability.
• Designed for high uplift load resistance in wood construction.
• Embossments add stiffness in critical areas for enhanced performance.
• U-shaped design optimized for coastal areas and high-wind conditions.
• Faster installation compared to using two single-sided ties.
• Additional fasteners into top plates and rafters/trusses provide higher uplift.
• Pre-bent flange attaches under the double top plate and can be straightened for header installation.
