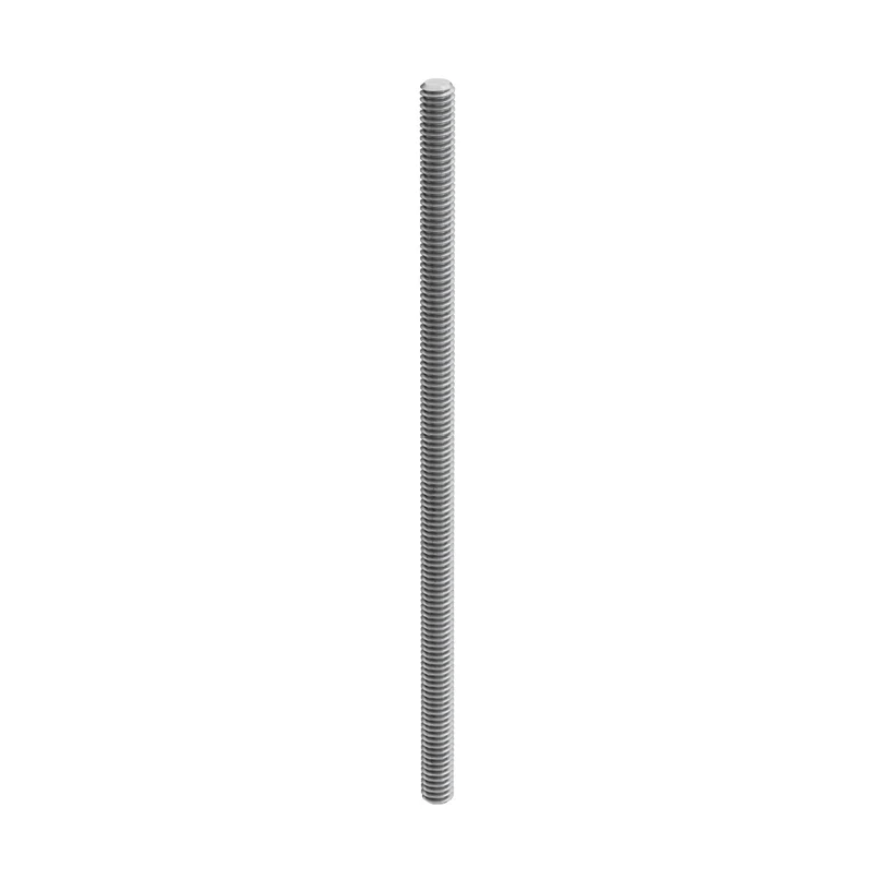

Simpson ALL THREAD ROD 7/8 X 26IN 26" x 7/8"

Product Description

The Simpson Strong-Tie All Thread Rod (ATR) is a versatile tension transfer solution designed for use in Anchor Tiedown Systems (ATS) for shearwall overturning restraint and for use in wind Uplift Restraint System (URS) applications. All thread rod is available in diameters ranging from 3/8" to 2" and lengths up to 12 feet, providing optimal performance for a wide range of construction needs. Engineered to meet ASTM standards, these rods offer reliable tensile strength, making them useful in both residential and commercial projects. Installation: To install the Simpson Strong-Tie All Threaded Rod, select the appropriate rod size based on your structural requirements. Cut the rod to the desired length if necessary. Thread the rod through the required components, ensuring secure attachment in concrete or other substrates if applicable. Tighten nuts or other fasteners to specified torque levels, ensuring proper tension transfer. Follow all applicable building codes, structural engineering specifications, and manufacturer guidelines to ensure safe and effective installation.

Product Information

• Sold per piece
• Dimensions: 26" x 7/8"
• For use with Anchor Tiedown Systems (ATS) and wind Uplift Restraint System (URS) applications.
• Available diameters range from 3/8" to 2" and lengths up to 12 feet.
• Designed to meet ASTM standard: ASTM F1554 Grade 36, A36 or A307.
• Suitable for residential and commercial construction projects.

Additional Resources

Link to manufacturer website.

Link to submittals.

Link to collection.
